Angle of repose tester for granular materials GB/T 21060-2007 ISO 4324
Product Introduction

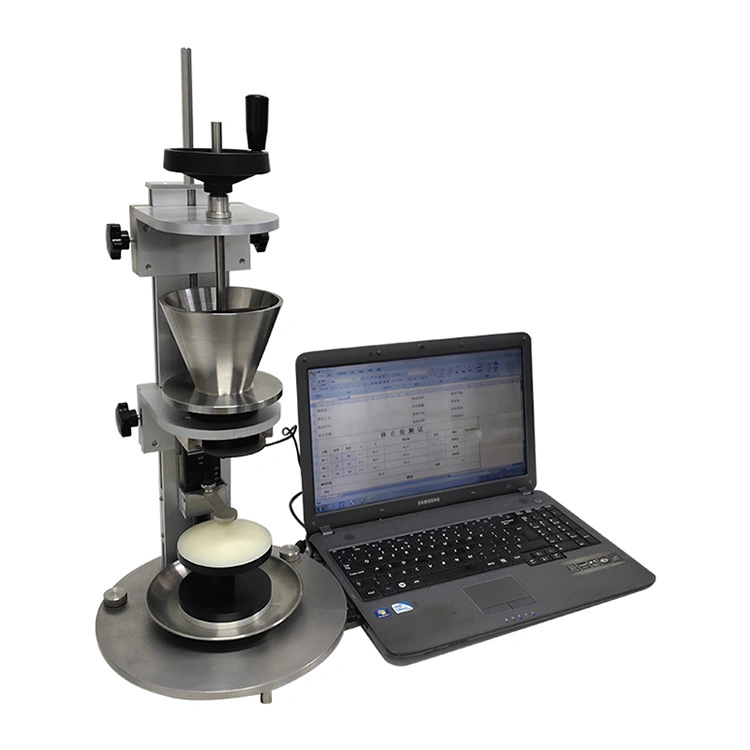

The angle of repose tester complies with the national standards GB/T 21060-2007 and ISO 4324. This instrument is used to test the angle of repose of powders to evaluate their flowability. It is equipped with software that automatically calculates the angle of repose, flowability index, and evaluation to ensure accurate measurement. The instrument is made of 304 stainless steel, which is easy to clean and durable. It has the advantages of easy operation, data storage and printing. Suitable for non-metallic powder particle testing and industries such as pharmaceuticals and plastics. The instrument can be connected to a computer, and the measurement data can be uploaded to computer software. The software can calculate the angle of repose of the powder pile and provide the flowability index and flowability evaluation based on the test results, avoiding errors caused by manual measurement and calculation. At the same time, it is equipped with a stirring rod to assist the flow of powders with poor fluidity, so that powders with poor fluidity can also participate in the detection.
Features
1.The instrument is equipped with software that can automatically calculate the angle of repose of the powder pile. All test data is automatically calculated by the software, and a report is generated automatically. The flowability evaluation is given based on the angle of repose.
2.The test data can be saved and printed for future processing and retrieval.
3.Simple and convenient operation, fast measurement speed, and intuitive.
4.The instrument body is made of 304 stainless steel, which is easy to clean and will never rust
5.Simple and fast automatic determination of angle of repose, and automatic determination of powder flowability through angle of repose
6.The instrument is equipped with a stirring scraper, which can help test powders with poor fluidity
Product Parameters
1.Power supply: 5V
2.Size: 280 * 280 * 600
3.Weight: 8kg
4.Funnel volume: 520ml
5.Funnel outlet size: 4 6 8 10 13 15 18 20mm, available in multiple options
6.Material: Made of 304 stainless steel and aluminum alloy
