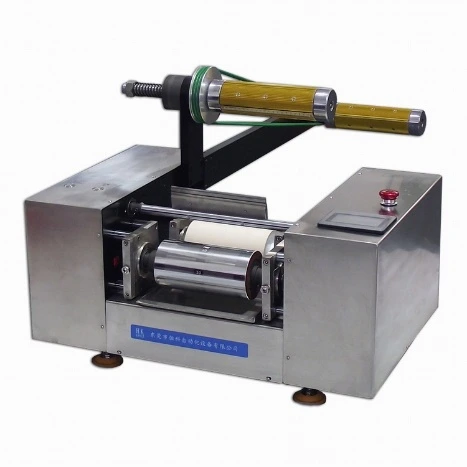

Flexographic Printing Proofer
Specifications
|
Inking method |
dropper to drop ink |
|
Proofing material thickness |
0.01-2mm (bendable material) |
|
Proofing material size |
220*260mm |
|
The pressure of plate roller and ceramic roller can be adjusted finely |
the adjustment range is 1mm |
|
The pressure of plate roller and impression cylinder can be finely adjusted |
the adjustment range is 2mm |
|
Printing speed is adjustable |
0-40m/min |
|
Printing area |
165*165mm |
|
Plate area |
165*190mm |
|
Plate thickness |
1.7MM thick flexible plate |
|
Ceramic mesh roll specification |
φ70*185mm |
|
The number of ceramic anilox roller lines |
400 lines, 500 lines, 600 lines, one standard (300- 1000 can be customized) |
|
Input power |
220V, 50/60Hz |
|
Power |
200W |
|
Dimensions |
L530*W425*H340mm |
|
The net weight of the instrument |
76KG |
