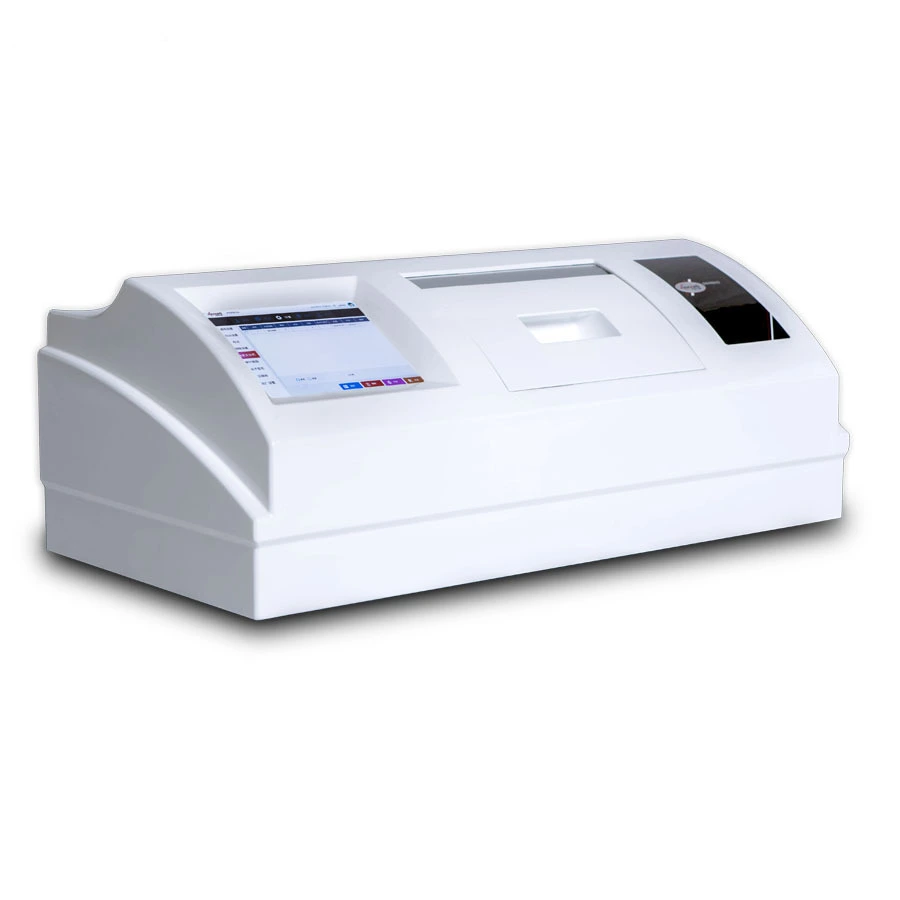

Fully digital polarimeter 21CFR GLP GMP
Through the determination of optical rotation, the concentration, content, and purity of substances can be analyzed and determined. The polarimeter is a widely used physical property analysis instrument.
Features
1: Built in Peltier temperature control, improving accuracy and stability;
2: Optical rotation/specific rotation/concentration/sugar content and custom mode;
3: LED cold light source replaces traditional sodium lamp and halogen tungsten lamp;
4: Support network printing and data statistical retrieval;
5: Multi level permission management, permissions can be freely configured;
6: 10.4-inch touch color screen, user-friendly operation interface;
7: Complies with 21CFR requirements (electronic signature, data traceability, audit tracking, data tamper prevention, and other functions);
8: Fully compliant with GLP GMP certification specifications.
9.Real time detection and graph: with rotational rotation timing and real-time detection, and with rotational rotation real-time graph
10. Operation language: switchable between Chinese, English, and Spanish
Specifications
|
Model |
FX-PM930 |
|
Measurement mode |
Optical rotation, specific rotation, concentration, sugar content, and custom formulas |
|
Light source |
LED cold light source+high-precision interference filter |
|
Working wavelength |
589.3nm (wavelengths of 405nm, 435nm, 546nm, and 633nm can be added, each wavelength can be set on the control panel, and the instrument automatically switches wavelengths.) |
|
Test function |
Single, multiple, and continuous measurement methods |
|
Measuring range |
Polarity ± 90 ° Brix ± 259 ° Z |
|
Minimum reading |
0.0001 ° |
|
Measurement repeatability |
The standard deviation of three consecutive measurements of optical rotation shall not exceed 0.002 ° |
|
Accuracy |
± 0.002 ° (below 1 °), 0.2% (between 1-5 °), 0.01 ° (above 5 °). |
|
Repeatability |
(Standard deviation s) 0.001 ° (Optical rotation) |
|
Temperature range |
10 ℃ -60 ℃ (Parcel) |
|
Temperature resolution |
0.01 ℃ |
|
Temperature control accuracy |
± 0.03 ℃ |
|
Display method |
10.4-inch TFT true color touch screen |
|
Standard test tube |
Supports two types of temperature control tubes, 2DM and 1DM, for temperature control. It can be equipped with one 1DM and one 2DM Hastelloy temperature controlled optical tube each, and can be equipped with one 1DM and one 2DM ordinary measuring tube each |
|
Transmittance |
0.01% |
|
Data storage |
128G |
|
Automatic calibration |
Yes (standard with 6 standard tube automatic calibration tools) |
|
Audit trail yes |
√ |
|
Electronic signature has |
√ |
|
The pre stored measurement methods include |
√ |
|
Custom formula editing has |
√ |
|
Multifunctional retrieval |
√ |
|
Printing |
Universal printer WIFI printing (standard with one HP printer) enables real-time data printing |
|
Method library |
√ |
|
Cloud services |
√ |
|
MD5 code verification |
√ |
|
Custom formula |
√ |
|
User management |
√/Fourth level permission management |
|
Export in multiple file formats |
PDF and Excel |
|
Communication interface |
USB connection, RS232 connection, VGA, Ethernet |
|
Instrument level |
0.01 level |
|
Power supply |
220V ± 22V, 50Hz ± 1Hz, 250W |
|
Net weight of instrument |
28kg |
|
Optional accessories |
Capacity 50mm and 200mm long temperature control tubes, mouse, keyboard connection, universal printer/wireless network printer |
