Granules flowability tester Particle fluidity tester Granulate Flow Tester
Standards
GBT2060-2007, ISO6186:1998/ISO4324/ISO8393, USP1174, EP2.9.36/EP2.9.16, etc.
Product Introduction

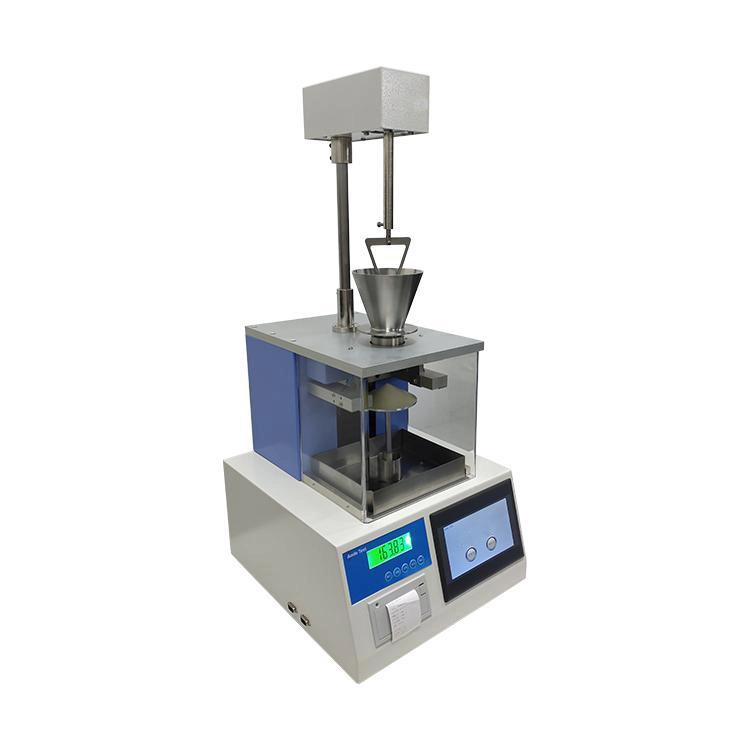

The intelligent Granules flowability tester is an instrument used to test the flowability and angle of repose of powders. The instrument can automatically test the angle of repose, powder flow time, bulk density, volume, and corresponding mass of the powder pile flowing out through the funnel to comprehensively evaluate the flowability of the powder. The software will automatically calculate the flowability evaluation and flowability index of the powder, and can also generate flow rate and mass curve graphs.
Features
1. The instrument will measure the pile angle, volume, and outflow time of the powder pile, and automatically provide a flowability evaluation based on these results
2. Using a combination of photoelectric and quality sensors for precise testing of powders
3. All operations are controlled through a 7-inch touch screen, making it easy to operate. The test results can be saved and printed, can query historical data
4. There are two different login permissions, administrator login and operator login, for easy management
5. Good repeatability and high testing accuracy
6. Equipped with an auxiliary powder flow stirrer, it can also detect powders with poor flowability
7. Equipped with a transparent protective cover, it can prevent operators from being forced to inhale powder and air during the testing process
The impact of flow on experiments
8. The switch for releasing powder from the funnel is automatically activated by induction.
After the test is completed, the software automatically analyzes the test results and evaluates their liquidity.
Product Parameters
1. Power supply: 220v50Hz 60W
2. Size: 38 * 43 * 88cm
3. Weight: 30kg
4. Funnel volume: 520ml
5. The upper limit of the angle of repose is 55 degrees
6. Funnel outlet size: 2, 5, 10, 15, 18, 20 optional
