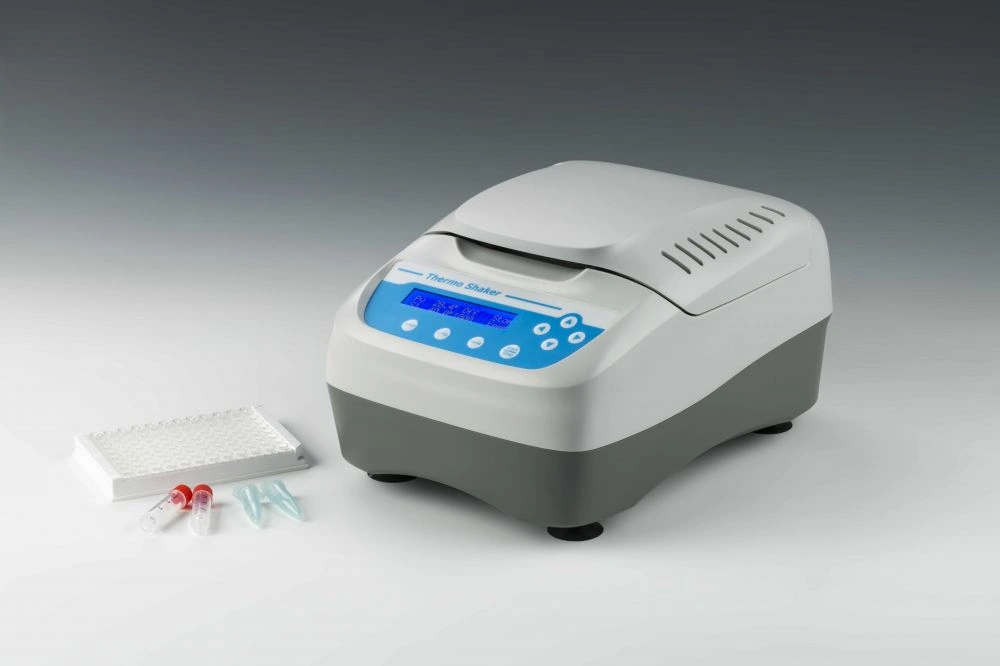

Hot Cover Constant Temperature Mixer

TPS1000 hot cover constant temperature mixer is a multi-purpose constant temperature oscillator that combines a DC brushless motor and PID intelligent temperature control technology. Its PID fuzzy control technology can accurately ensure temperature control accuracy and automatically adjust the heating rate to save waiting time. The adjustable temperature hot cover function can effectively prevent phenomena such as evaporation and tube explosion in the sample tube, and greatly improve the temperature control uniformity. The built-in fan cooling function can reduce sample cooling time.

Inquiry

Write a Review

Specifications

Temperature range	RT+5℃~105℃
Time setting	1sec~99min59sec /1min~99h59min/∞
Control accuracy	≤±0.3℃
Display accuracy	0.1℃
Temperature uniformity	≤±0.3℃
Speed range	200~3000RPM
Horizontal amplitude	2mm
Heating time	≤10mins（25℃ rise to 100℃）
Cooling time	≤12mins（100℃ drop to 37℃）
Hot cover temperature setting range	OFF/AUTO/0℃~110℃
Hot cover temperature control range	RT+5℃~110℃
Heating time of hot cover	≤10min（25℃ rise to 110℃）
Independent temperature control function of hot cover	√
Automatic fan cooling function	√
Program segment storage	10 segments
Multipoint operation	√（max 5 points）
Multipoint loop operation	√（ max circulation 99times）
Automatic preheating	√
Automatic constant temperature after running	√
Hot cover temperature regulation mode	auto/manual
Automatic operation upon startup	√
Automatic recovery after power outage	√
Countdown delay function	√
Sample capacity	See mould list
Input power	335W
Voltage	AC220V/50-60HZ
Fuses	250V 3A Ф5×20
Overall dimensions (mm)	296x212x164mm
Weight	6.9kg
