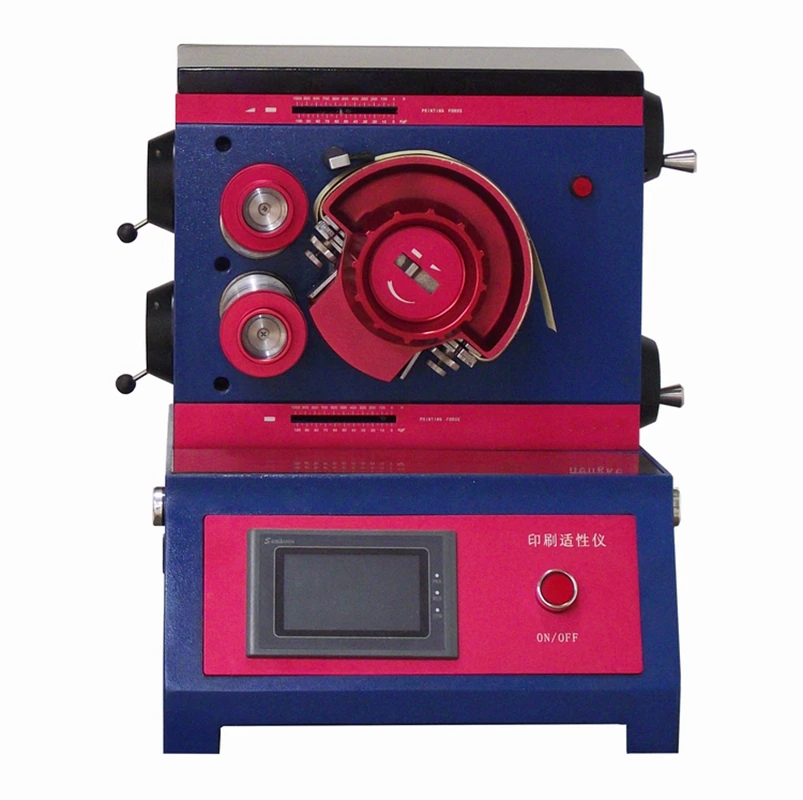

IGT printability tester ISO 3782

Model: ZS-IGT The Printability tester adopts IGT method to determine the printing adaptability of paper and ink, such as paper surface strength, printing smoothness, roughness, ink absorption, ink transfer, and printing density (special accessories are required). It is a high-end testing equipment composed of an electronic printing suitability tester and a variable frequency Ink homogenizer.

Standards: GB/T 22365-2008, GB/T2679, ISO 3782, QB/T 1020

Inquiry

Write a Review

Specifications

Instrument functions	Paper fuzzing test
Printing base	Fixed rotating fan-shaped printing disc
Transfer base	26mm plug-in ball bearing rotating base, eccentric rotating base mechanism
System control mode	microcomputer
Working mode	Imitate the working principle of printing machines and achieve simple offline operations
Other functions	Matching with corresponding accessories can achieve printing permeability and paper roughness measurement (optional)
Maximum printing width	15mm, 50mm
Printing pressure	100N-1000N adjustable
Pressure mode	Pneumatic adjustable
Acceleration device	Embracing energy release acceleration system
Printing speed	0.5-4m/s adjustable
Operation method	touch screen
External dimensions	485 465 580
Weight	100kg
Power supply	115/230VAC,
Variable frequency High speed Ink homogenizer
Movable main disk size	about dia. 50*250mm
Roller size	about dia. 70*200mm
Ink Homogenizing qty	1 or 2
Ink Homogenizing speed	0~140rpm
Main power	300w
Operation	touch screen
Data port	built in RS232 port, can be connected to PC
Overall dimensions	(630400300)mm
Net weight	50kg
