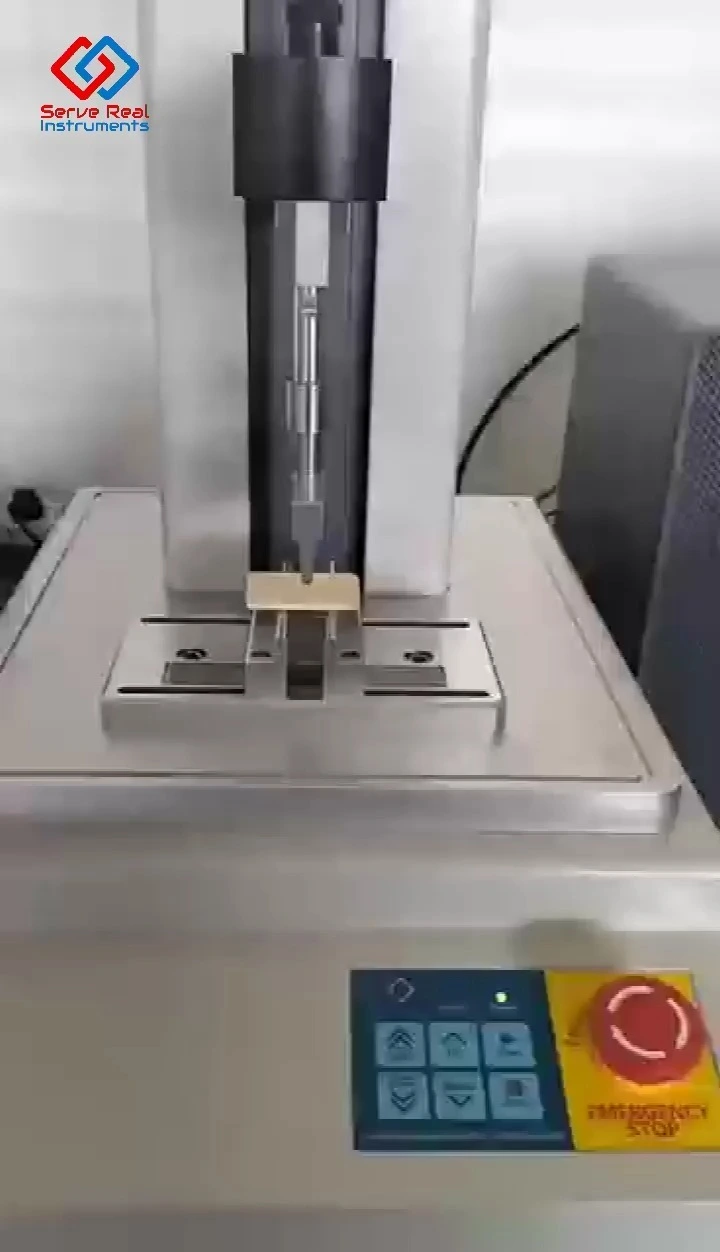

Industrial degree Texture analyzer

1. Features

1.1 Embedded 8-inch high-definition touch screen, which can be controlled directly by touch, or by mouse and keyboard.

1.2 Can directly edit experimental methods, high-speed data acquisition, read and store test data, describe measurement curves, display, analyze, trace, store and print test results without an external computer.

1.3 With convenient appearance and powerful functions, this model is more suitable for; Various occasions such as research and development of laboratory projects or production quality process control or monitoring spot checks or teaching and teleconferencing.

1.4 It can be applied to the physical property analysis of food, pharmacy, dairy products, meat products, cosmetics, aquatic products, gel, candy, fruits and vegetables, and other samples; It can quantify the hardness, brittleness, tenderness, viscosity, elasticity, toughness, cohesion, mastication, freezing strength, tensile strength, breaking strength, shear strength, compressive strength, penetration strength, creep characteristics, relaxation characteristics and other physical indicators of the sample.

*1.5 The newly upgraded DP1.4 ultra clear image quality interface (supporting 8K) is standard configuration, which can display the video image collected by the texture analyzer, the whole real-time image from the trigger of the probe and sample to the completion of the test, with rich details and clear image quality. (and recorded)

1.6 The force sensing element can be replaced quickly and safely. Through the conversion of force sensing element, the detection range can be changed, and the induction resolution can be changed to adapt to different sample analysis.

1.7 It can support the configuration of more than 100 kinds of universal probes and fixtures, which are common with imported texture meters.

Specifications

2.1 Equipped with a new 12 generation Intel Core processor, 8GB DDR4 memory and 512GB high-speed SSD data storage disk. 6-core 8-thread 4.4GHz Remax, 10MB cache. Super collection rate, synchronous video pictures, real-time curve rendering, and massive data access are free of jamming.

*2.2 provides gigabit network interface, built-in advanced Wi Fi 6TM8 and Bluetooth 5.29, DP1.4, HDMI USB-C@3.2 Gen2, USB-A2.0, USB-A3.2, and industrial nine pin serial COM interface.  provides as many and complete peripheral interfaces as possible, so that your texture analyzer can easily realize intelligent interconnection.

2.3 Can be expanded to connect two large display screens or projection screens, which is convenient for video conference or teaching.

2.4 Size of force sensing element: 20Kg (1, 2, 5, 10, 20, 25Kg optional)

2.5 Precision of force sensing element: 0.02%

2.6 Load resolution accuracy: 0.001g

2.7 Displacement range: 0~320mm

2.8 Displacement resolution accuracy: 0.0001mm

2.9 Data collection rate: up to 4800 groups per second, optional after optimized filtering (200sps, 500sps, 1000sps, 2000sps, 3000 sps, 4000sps)

2.10 Moving speed: 0.01mm/s~40mm/s

2.11 Speed accuracy: ≤± 0.1%

2.12 Overall dimensions: 550mm long * 320mm wide * 830mm high

2.13 Weight: about 29Kg

Software functions

*3.1 The texture analyzer is embedded with a high-definition camera module, which can record the whole process of the test of important samples, and synchronously save it in the traceable database together with other test data of the test.

3.2 Test playback: the software automatically records the whole process of the test (including synchronous video recording), and provides multiple methods of intelligent retrieval. The test can be traced back to any period for data restoration, curve drawing and synchronous video playback to view and analyze the test details of the queried samples.

3.3 The system can display three kinds of curves: force time, force distance and distance time. The curve can be scaled, scaled, marked with text or symbols, automatically switched colors, and automatically calculated the area of relevant data points and selected graph fields.

3.4 The software provides hierarchical authority management: three levels, multiple users. (User name+password login).

3.5 The software can simultaneously select 5 current or historical test results (function curve, measurement data, synchronous video) for comparison and analysis.

3.6 The software operation interface is friendly: menu bar, toolbar, status bar, display bar, curve box, the experiment process is clear, and the control buttons are convenient and fast. Chinese and English operating systems, one button switch.

3.7 The software has powerful results analysis and output functions: it can generate test reports in multiple data formats: Excel, Word, PDF according to strict and objective prompts.

3.8 The system provides the program unit for measuring and verifying the measurement accuracy, and has the functions of automatic measurement, automatic correction and automatic repair.

3.9 The software provides more than ten test methods: single compression, cyclic test, relaxation test, creep test, full texture test, tensile test, bending test, shear test, puncture test, meat tenderness test, freezing strength test, gel hydrogel test, etc. The software supports quick customization and addition of test modes.
