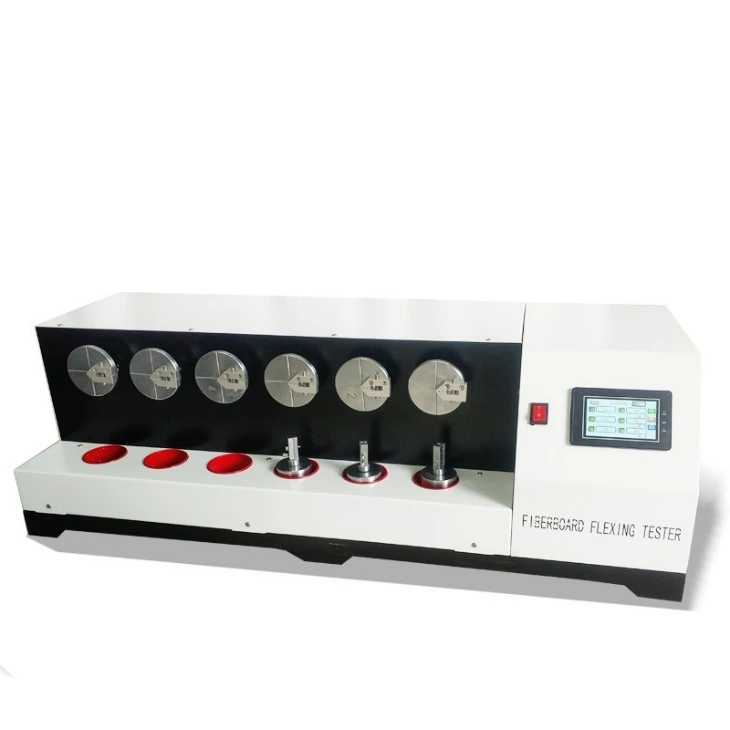

Insole Fiberboard Bending Test Machine

This device is used to test the bending resistance of midsole fiberboard for leather shoes, casual shoes, travel shoes, and other shoes. During the test, the specimen was continuously bent back and forth to the left and right by 90 degrees until it broke. The bending resistance index of the middle bottom plate was determined based on the number of times it broke.

Standards: BS-5131,QB/T1472, SATRA PM3,PM4, PM5,PM6,PM15,PM16

Inquiry

Write a Review

Features

♦ Surface treatment of the body: DuPont powder from the United States, electrostatic spray painting process, cured at high temperature of 200 ℃ to ensure long-lasting color fastness.

♦ The mechanical components are composed of non corrosive structural aluminum and stainless steel materials;

♦ Color LCD touch screen control and display, easy to operate, easy to maintain, stable and reliable;

♦ Precision variable frequency drive motor, smooth operation and low noise;

♦ One click fully automatic testing, easy and convenient to operate;

♦ High precision bearings are selected for stable rotation and long service life;

♦ 6-channel vertical design with stable bending and high efficiency;

♦ Fix the sample vertically up and down, hang the weight vertically at 180 degrees;

♦ Immersion type induction switch, automatic induction for fracture;

Specifications

Upper clamp	6pcs
Weight (with lower clamp)	2kgX6pcs
Counter	LCD,0~999,999
Motor	DC brushless motor, 120W
Dimension	109X26X34cm
Weight	About 149kg
Power	AC220V 50HZ
