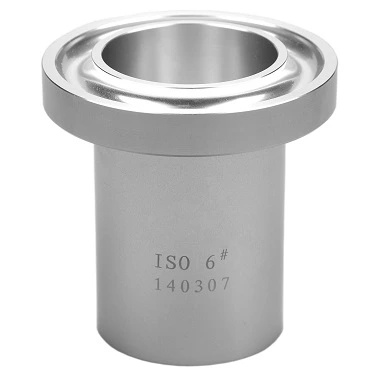

ISO Flow Cups
Model:VC-3
Standards: GB/T 6753.4, ISO 2431, ASTM D 5125
Ordering information
VC-3------ISO flow cups
VCA 130---Square Viscosity Cup Holder
VCA 131---Tripod Viscosity Cup Holder
VCA 132---All stainless steel viscosity cup holder
VCA 133---Tripod Viscosity Cup Holder with Thermostatic Water Bath Cover
VCA 1501---JM-504 Diamond mechanical stopwatch
VCA 1500---PC 396 Electronic Stopwatch
VCA 1600/1---Standard viscosity silicone oil (5cP)
VCA 1600/2---Standard viscosity silicone oil (50cP)
VCA 1600/3---Standard Viscosity Silicone Oil (100cP)
VCA 1600/4---Standard Viscosity Silicone Oil (200cP)
VCA 1600/5---Standard Viscosity Silicone Oil (500cP)
VCA 1600/6---Standard Viscosity Silicone Oil (1000cP)
Specifications
|
Model |
VC-3-3 |
VC-3-4 |
VC-3-5 |
VC-3-6 |
VC-3-8 |
|
Material |
Aluminum alloy body, SUS flow nozzle |
||||
|
Inner wall max roughness |
Ra≤0.5ｕm |
||||
|
Pore dia. Ф(mm) |
3 |
4 |
5 |
6 |
8 |
|
Flow out time(S) |
30-100 |
30-100 |
30-100 |
30-100 |
30-100 |
|
Measure range(cS t) |
7-42 |
34-135 |
91-326 |
188-684 |
600-2000 |
|
Ordering Code |
BGD 128/3 |
BGD 128/4 |
BGD 128/5 |
BGD 128/6 |
BGD 128/8 |
