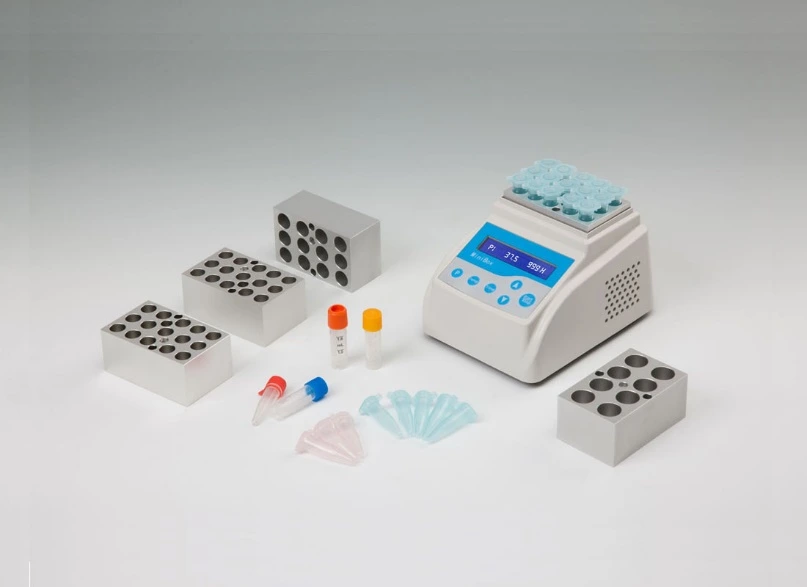

Lab Mini Dry Thermostat
Product features:
1. Small size and flexible movement
2. Multiple specification modules are available to meet the needs of different test tubes
3. Portable, suitable for 12V power supply adaptation
4. Intelligent algorithm ensures temperature control accuracy of ≤ ± 0.3 ℃ within the full range, effectively reducing experimental errors
5. Optional power outage automatic recovery function, power on automatic operation function, to improve work efficiency
6. Each instrument is equipped with a module handle, which allows for safe and fast module replacement even under high temperatures
7. Transparent insulation cover facilitates users to observe the entire process of the experiment through perspective observation
8. Multiple security protection ensures long-term stability and safety in unmanned situations, meeting CE standards and ensuring safety and reliability.
Specifications
|
Model |
MiniBox |
MiniBox-C |
|
Temperature setting range |
RT+5℃～100℃ |
RT-15℃～100℃ |
|
Control accuracy |
≤±0.3℃ |
|
|
Time setting range |
1sec～99h59min/∞ |
|
|
Module temperature uniformity |
≤±0.3℃ |
|
|
Display accuracy |
0.1℃ |
|
|
Temperature stability |
±0.3℃ |
|
|
Heating rate |
≤20min（from 40℃~100℃） |
≤20min（from 25℃~100℃） |
|
Cooling time 1 |
-- |
≤20MINS（100℃ to 25℃） |
|
Cooling time 2 |
-- |
≤25mins （from room temperature to 15℃ down） |
|
Save at 4 ℃ after running |
-- |
√ |
|
Multipoint operation |
-- |
Supported (up to 5 points) |
|
Multipoint loop operation |
-- |
Supported (maximum number of cycles 99) |
|
Automatic preheating |
-- |
√ |
|
Automatic operation upon startup |
√ |
|
|
Automatic recovery after power outage |
√ |
|
|
Sample size |
See product accessories for details |
|
|
Overall dimensions |
145×113×110mm |
145×113×140mm |
|
Maximum power |
40W |
60W |
|
Supply voltage |
AC100~240V / 50~60Hz |
|
|
Weight |
0.5kg |
1kg |
