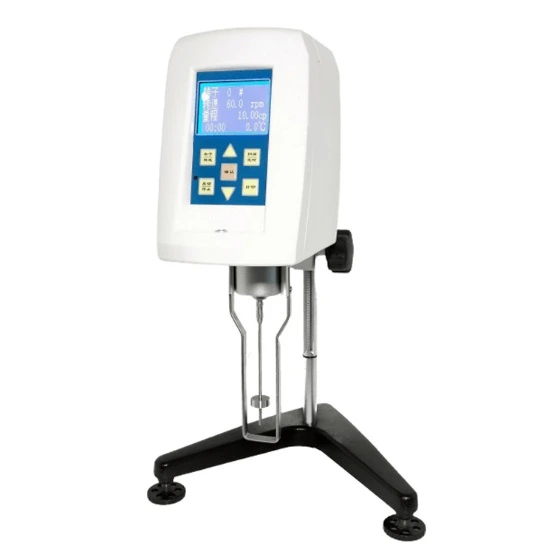

NDJ-T Series Touch Screen Rotational Viscometer
Features
ARM technology, built in Linux system, friendly operation interface, built-in test program for easier & fast viscosity measurement;
Accurate viscosity measurement, each test range is calibrated by computer, high accuracy, less error;
Diverse display index: viscosity, temperature, shear rate, shear stress, percentage of measured value(graphical display), overflow alarm, auto scan, measure range under current rotor & rotation rate fixture, data, time. Can indicate dynamic viscosity under already known density;
Real time display of viscosity curve, data & curve printing, timing measurement,
Front location of spirit level
Temperature probe, constant temperature water bath, constant temperature cup, printer, standard viscosity sample(Standard silicone oil)
English operation menu
Specifications
|
Model |
NDJ-5T |
NDJ-8T |
NDJ-9T |
|
control/display |
5 inch touch screen |
||
|
Speed (r/min) |
6/12/30/60 |
3/6/12/30/60 |
|
|
Measuring range
|
1~100000 mPa.s |
1 ~2000000 mPa.s |
1~100000 mPa.s |
|
(To measure ultra-low viscosity below 10, 0# rotor is required) |
|||
|
Rotor |
1 - 4# (l); 0# rotor (optional) |
||
|
Measurement error (Newtonian liquid) |
±0.5% |
||
|
Repeat error (Newtonian liquid) |
±0.25% |
||
|
Timing function |
l |
||
|
Temperature measurement function |
Standard temperature probe interface (optional temperature probe is required) |
||
|
Auto scan function |
Automatically scans and recommends preferred combinations of rotors and speeds |
||
|
Display measuring range |
Automatically displays the measurable viscosity range for the selected spindle and speed combination
|
||
|
Show shear stress/shear rate |
l |
||
|
Automatic display of kinematic viscosity |
The density of the sample needs to be entered |
||
|
Self-built measurement program |
Save 30 groups (including rotor, speed, temperature, time, etc.) |
||
|
Save measurement results |
Save 30 sets of data (including viscosity, temperature, rotor, rotational speed, shear rate, shear stress, time, density, kinematic viscosity, etc.) |
||
|
Viscosity curve |
Display viscosity curve in real time |
||
|
|
Data and curves can be printed (with a print interface as standard, an optional printer is required) |
||
|
Data output interface |
l |
||
|
Thermostatic parts |
Options (including various viscometer thermostats, thermostatic cups, etc.) |
||
|
Working power |
110VAC / 60Hz or 220VAC / 50Hz) |
||
|
Dimensions |
300mm × 300mm × 450mm |
||
