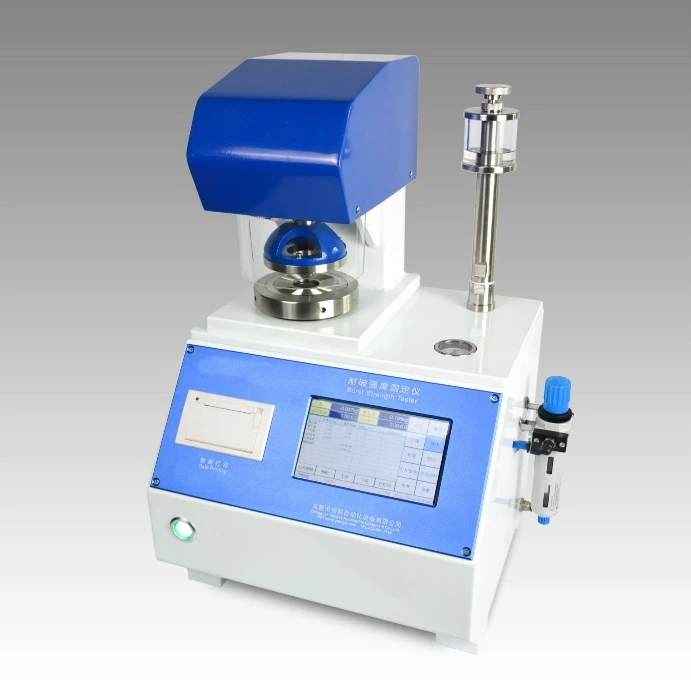

Paper Burst Tester
Standards: GB/T454 、QB/T 1057、ISO 2758
Parameter (Paper/Corrugated Board Test)
|
Measurement range |
200~5600kpa |
|
|
Accuracy |
≤ ± 0.5% |
|
|
Resolution |
0.01kpa |
|
|
Deformation error |
≤ 1mm |
|
|
Concentricity of upper and lower discs |
≤ 0.25mm |
|
|
Pressure of adhesive film protrusion |
protrusion height 10 ± 2mm; resistance range (170-220) kpa;Raised height 18 ± 2mm;Resistance range (250~350) kpa |
|
|
Oil delivery speed |
170 ± 5ml/min |
|
|
Pressure plate diameter |
Upper plate diameter 31.5 ± 0.5mm; Lower disc diameter 31.5 ± 0.5mm |
|
|
Human machine interface |
3.2in LCD display, real-time display of test data |
|
|
Clamping force |
greater than 690kPa (adjustable) |
|
|
Unit conversion |
Kg/cm ²、 Kpa, lbf/in ² |
|
|
Print output |
modular integrated thermal printer |
|
|
Weight |
50KG |
|
|
Parameter (Suitable for paper/aluminum foil testing) |
||
|
Measurement range |
50-1600kpa,ultimate strength>2000kpa |
|
|
Accuracy |
≤ ± 0.5% |
|
|
Resolution |
0.01kpa |
|
|
Deformation error |
≤ 1mm |
|
|
Concentricity of upper and lower discs |
≤ 0.25mm |
|
|
Pressure of adhesive film protrusion |
When the protrusion height is (9 ± 0.2) mm, the resistance range is (30 ± 5) kPa |
|
|
Oil delivery speed |
95 ± 5ml/min |
|
|
Pressure plate diameter |
Upper plate diameter 30.5 ± 0.1mm; Lower disc diameter 33.1 ± 0.1mm |
|
|
Human machine interface |
7-inch LCD display, real-time display of test data |
|
|
Clamping force |
100kpa~1200kpa (adjustable) |
|
|
Unit conversion |
Kg/cm ²、 Kpa, lbf/in ² |
|
|
Print output |
modular integrated thermal printer |
|
|
Weight |
50KG |
|
