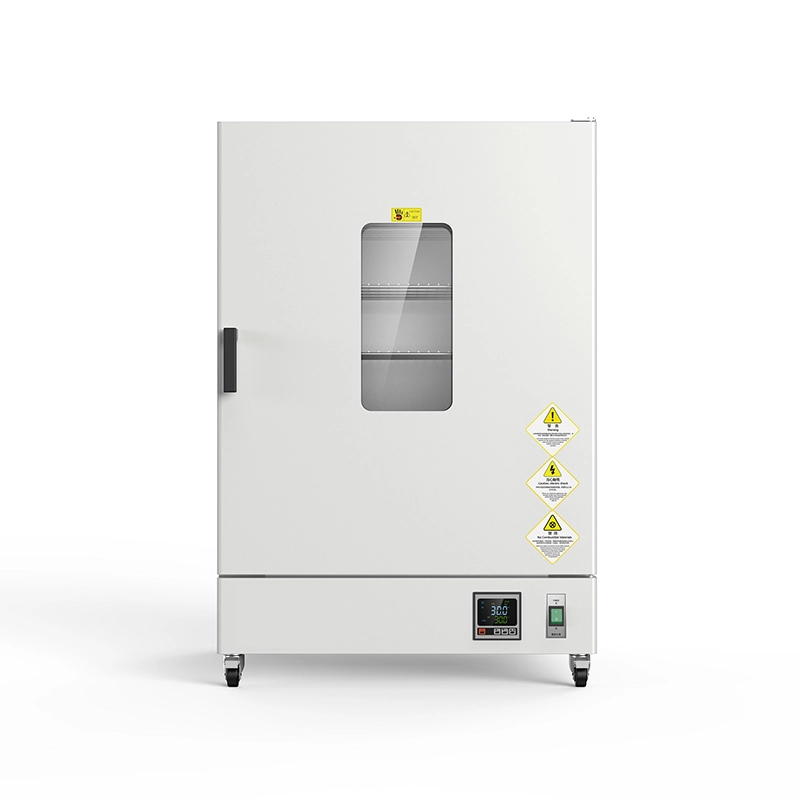

Precision drying ovens furnaces 250℃
Features
Large-screen LCD display, multiple groups of data displayed on one screen, menu-type operation interface, easy to understand and easy to operate
The fan speed control method is adopted to improve the temperature uniformity of the working room.
The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the cabinet without the trouble of manual adjustment.
It adopts microcomputer PID fuzzy processing controller with over-temperature deviation protection, which quickly reaches the preset temperature and runs stably.
Using German imported blower, the life is extended by 2 times
The inner tank is made of mirror stainless steel, the shelf bracket can be freely attached and detached, and the semi-circular four-corner design makes cleaning easier.
The shell of the box is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.
Independent temperature limit alarm system, which will be automatically interrupted when the limit temperature is exceeded, ensuring that the experiment runs safely without accidents. (Optional)
RS485 interface can be connected to the recorder and computer, can record the change of temperature parameters. (Optional)
Specifications
Model | HXGL-9070A | HXGL-9140A | HXGL-9240A | HXGL-9420A | HXGL-9620A | HXGL-9920A | |
Power supply | AC 220V/50HZ/10A | AC380V 50HZ | AC 380V, 50HZ, 3phase 5 core | ||||
Temperature range | RT+10~250 Degree C | ||||||
Temp. Fluctuation | ±1 degree C | ||||||
Temp. uniformity | ±2.5%(empty 100 degree C) | ||||||
Temp. resolution | 0.1 degree C | ||||||
Input power | 1100W | 1550W | 2050W | 3500W | 4000W | 6000W | |
Liner size(W*D*H)mm | 400*425*445 | 450*550*550 | 500*600*750 | 600*550*1300 | 800*640*1290 | 1000*600*160(0 | |
Overall size(W*D*H)mm | 545*580*800 | 640*710*905 | 680*800*1205 | 780*750*1850 | 980*750*1750 | 1180*800*2150 | |
Cap. | 80L | 136L | 225L | 420L | 620L | 1000L | |
Shelves | 2PCS | 3PCS | 4PCS | ||||
Timing range | 1-9999min | ||||||
Notice: the parameters are tested under empty load, no magnetic, no vibration, ambient temperature 20 degree C, humidity 50%RH | |||||||
Optional Parts
Intelligent program controller
Independent temperature controller
Embedded printer
RS485 port and professional software
Test hole 25mm/50mm
