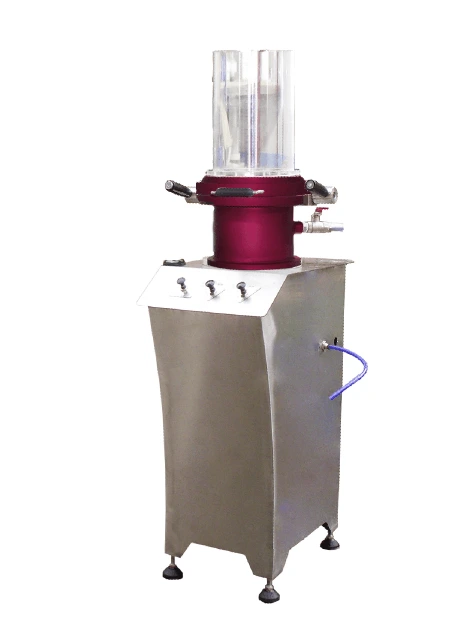

Simple Type Handsheet Forming Machine
Standards: GB/T24324-2009 、QB/T3703-1999、SO 5269/2 & ISO 5269/3， 5269/2, NBR 14380/99, TAPPI T-205, DIN 54358,
Parameter(without white water circulation)
1. Measurement range: 0~1000CSF
2. Sample diameter: ≤ 200mm
3. Copy weight range: above 30g
4. Homogenization method: manual homogenization integrated
5. Drying method: without drying
6. Body material: Stainless steel 304 # for the body, and the sheet metal processing for the copying part is made of stainless composite metal
7. Water addition and drainage method: hand valve inlet, direct drainage
8. Circulation method: without white water circulation, water is discharged directly
9. External dimensions: 500mm × 400mm × 1300mm
10. Accessories: One molded filter screen with 80/100 mesh each; A set of woolen pressure rollers.
11. Water source condition: Continuous water source is required
