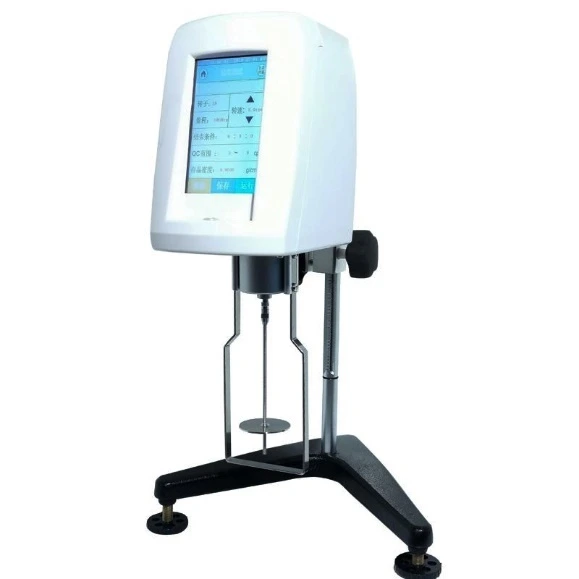

SNB-T Touch Screen Rotational Viscometer
Features
Built-in 30 sets of test programs can help users to obtain the viscosity and related data of the sample more quickly and accurately.
The 5-inch color touch screen can comprehensively and vividly display various parameters and working conditions.
It has obvious advantages such as many measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable rotation speed, strong anti-interference performance, and wide operating voltage. reach the international first-class level.
Using ARM microprocessor, built-in Linux system. The operation interface is concise and clear, through the creation of test programs and data analysis, the viscosity test can be carried out quickly and conveniently;
The viscosity measurement value is accurate, and each range is automatically calibrated by computer, with high precision and small error;
Rich display content: in addition to viscosity, there are temperature, shear rate, shear stress, measured value as a percentage of full scale value (graphical display), range overflow alarm, automatic scan, the maximum measurement range under the current rotor speed combination, date , time, etc. It can display kinematic viscosity under the condition of known density to meet the different measurement requirements of users;
Complete functions, can measure regularly, build 30 sets of test programs, access 30 sets of measurement data, display viscosity curve in real time, print data and curves, etc.;
Front level gauge, level adjustment is intuitive and convenient;
Optional temperature probe, viscometer constant temperature bath, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.;
Chinese and English operating system.
Specifications
|
Model |
SNB-1T |
SNB-2T |
|
Control/display |
5 inch touch screen |
|
|
Speed (r/min) |
0.3/0.6/1.2/3/6/12/30/60 |
0.1/0.3/0.6/1.2/3/6/12/30/60 |
|
Measuring range mpa.s
|
1～2000000 (2M mpa.s） |
1～6000000 (6 M mpa.s） |
|
To measure ultra-low viscosity below 10, 0# rotor is required |
||
|
Rotors |
1 - 4# (standard); 0# rotor (optional) |
|
|
Measurement error(Newtonian liquid) |
±1% |
|
|
Repetition error(Newtonian liquid) |
±0.5% |
|
|
Timing function |
Standard equipped |
|
|
Temperature measurement function |
Standard temperature probe interface (optional temperature probe is required) |
|
|
Auto scan function |
Automatically scans and recommends preferred combinations of rotors and speeds |
|
|
Display measuring range |
Automatically displays the measurable viscosity range for the selected spindle and speed combination |
|
|
Show clipping/Shear rate |
Standard |
|
|
Automatic display of kinematic viscosity |
The density of the sample needs to be entered |
|
|
Self-built measurement program |
30 groups can be saved (including rotor, speed, temperature, time, etc.) |
|
|
Save measurement results |
30 sets of data can be saved (including viscosity, temperature, rotor, |
|
|
Viscosity curve |
rotational speed, shear rate, shear stress, time, density, kinematic viscosity, etc.), real-time display |
|
|
Print Data |
Display viscosity curve in real time |
|
|
output interface |
Data and curves can be printed (with a print interface as standard, an optional printer is required) |
|
|
Thermostatic parts |
Standard |
|
|
Working power |
110VAC / 60Hz or 220VAC / 50Hz |
|
|
Dimensions |
300 × 300 × 450mm |
|
