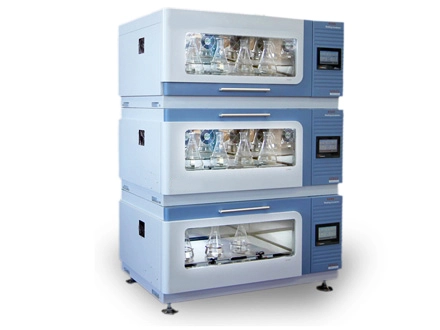

Stackable illuminated Shaking Incubator

Integrates full-temperature shaking culture and light culture functions. Can be used for static culture or dynamic culture. LED combination full spectrum design, multi-level adjustable light intensity, high efficiency and energy saving, high efficiency, longer service life; Especially equipped with an external ambient temperature probe, the ambient temperature is displayed on the panel in real time, which is convenient for precise control of the temperature inside the box. With encrypted functions of operation interface to ensure operation security, and all control functions are locked regularly. Control system integrates lighting and ultraviolet sterilization functions, convenient for observation and sterilization.

Optional functions

1. Remote monitoring on mobile phone APP

2. Micro-printer to print data and curves

Inquiry

Write a Review

Specifications

Product name	Precision stackable full temperature illuminated shaking incubator
Model	PY-ZGD228
Standard control system	LCD(16-bit true color touch screen) 7-inch touch screen
Oscillation frequency	30-300rpm
Oscillation frequency accuracy	±1rpm
Rocker amplitude	Ф26mm
Temperature control range	4~65℃
Temperature resolution	0.1℃
Temperature uniformity	±0.3 （at 37℃）
Control method	PID microprocessor
Light intensity	0-16000LX Multi-speed adjustable (standard) / up to 0-30000LX multi-speed adjustable (optional)
Shaker size (mm)	850×530
The maximum capacity of a single layer (ml × branch)	100×95;250×56;500×38;1000×22;2000×12
Single-layer standard capacity (ml × branch)	100×45;250×28;500×28;1000×18 ;2000×9
Timing range	0~999.9mins（hrs）
Single layer power (kw)	1.5
Power supply	AC220±10% 50~60Hz
Single layer dimensions	1368×900×600
Single pack size	1500×1026×860
Net weight of single layer (kg)	220
