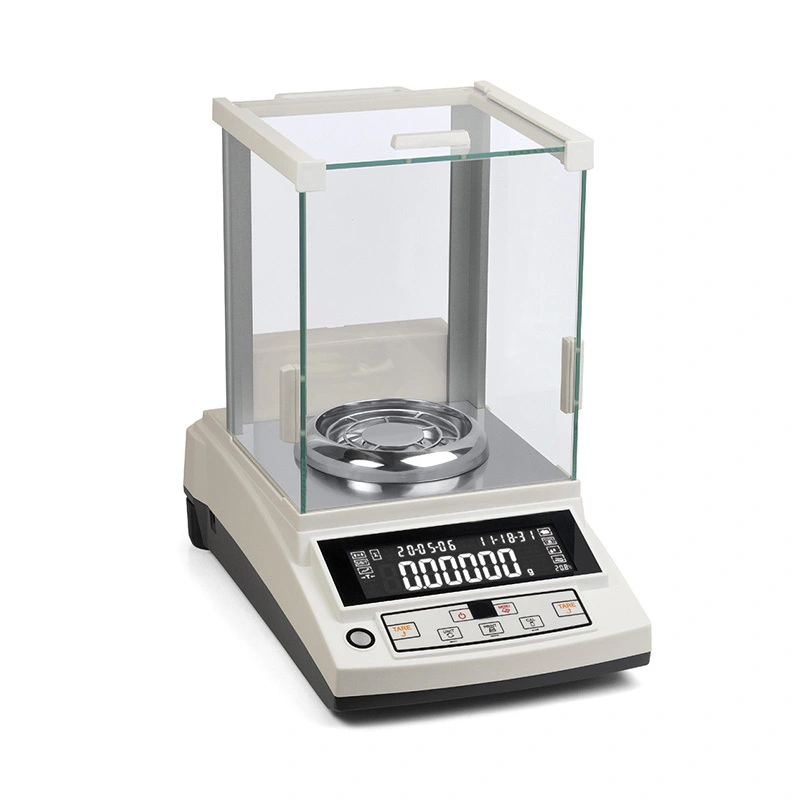

TPX-FA 0.1mg Analytical Balance
The TPX-FA series balance adopts a new generation digital circuit scheme, utilizing multi-layer circuit technology to achieve higher integration, integrating more program application solutions, and multiple intelligent filtering technology to achieve full temperature compensation and multi-point linear correction. Widely meeting the high-end demands of customers for precision weighing.
Product Specifications
| Model | Measure Range(g) | Readout (mg) | Repeatability (mg) | Linear Error(mg) | Platen Size(mm) | Overall Dimensions(mm) |
| TPX-FA110/120 | 110/120 | 0.1 | ±0.1 | ±0.2 | Φ80 | 345×223×331 |
| TPX-FA210/220 | 210/220 |
Application Mode
※ Percentage weighing function
※ Density weighing direct reading function
※ Animal weighing function
※ Set object weighing and counting function
Main Features
◆ Electromagnetic force quality sensor
◆ Manual external calibration function
◆ Real time temperature compensation function
◆ Seven level shockproof filtering adjustable function
◆ LCD large interface with backlight display
◆ Adjustable weighing stability time function
◆ More than 20 units including grams, carats, ounces, etc
◆ Switch on/off to automatically lock the current mode
◆ Built in adjustable display functions for date, time, and temperature
Portable handheld handle, rear weight glove toolbox
◆ Install plugins, PC end balance data can be read directly
Equipped with USB/RS232 communication port to connect peripheral devices
◆ Lower hook weighing device
The weighing function can be manually operated on a PC, and the balance measurement data can be written into Excel, WORD, and other documents with the cursor.
