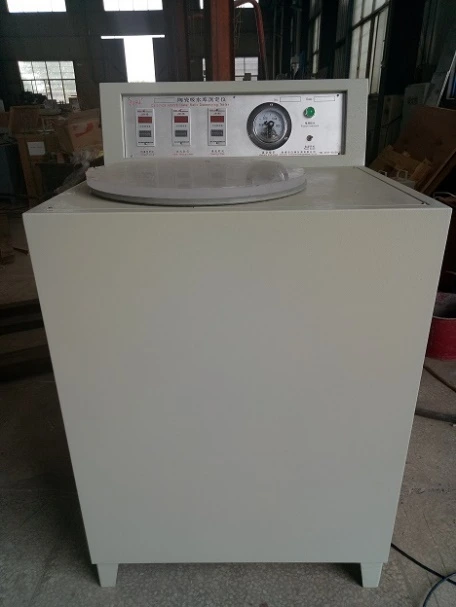

TXY Digital Ceramic Water Absorption Tester

This equipment uses the vacuum method to measure the water absorption, apparent porosity, apparent relative density, and bulk density of daily ceramics, building sanitary ceramics, electric porcelain, and refractory materials. It also can be used to determine the water absorption of bricks, cement products, refractory materials, etc.

Standard: GB/T3810.3-2016, ISO10545-3-1995, GB/T3299-2011

Inquiry

Write a Review

Construction & structure

The instrument adopts an electromechanical integrated structure, it’s composed of a vacuum container, a water circulating vacuum pump, an inlet solenoid valve, a drain valve, a water container and a digital controller. The water circulation vacuum pump features low operating noise, durable in operation, and low power consumption.

Specifications

1. Vacuum degree:≥0.095Mpa, continuous adjustable

2. Vacuum time: 0~99 min 59 sec continuously adjustable

3. Water injection time: 0~99 min 59 sec continuously adjustable

4. Soaking time: 0~99 min 59 sec continuously adjustable

5. Volume: Φ250×300mm, Φ400×450mm, two specifications are optional

6. Power source: AC220V, 180w
