XK-200 darkroom red light timer

Main technical parameters
1. Dimensions: 200 × 140 × 60 (mm)
2. Maximum timer time: 99 minutes and 59 seconds
3. Rated voltage: 220V/50HZ
4. Rated power: 10W
5. Weight: 0.8Kg

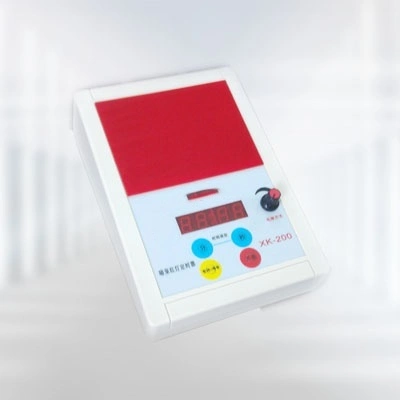

① Time display screen ② minute adjustment button ③ pause/reset button ④ run button ⑤ second adjustment button ⑥ power switch, dimming knob ⑦ darkroom red light ⑧ shell
usage method
1. This machine uses AC 220V/50HZ power supply. Insert the timer power plug into the power socket, turn on the power switch, and the screen displays "00 minutes and 00 seconds". If other displays appear, you can use the pause/reset button to clear or turn off the power switch to restart.
2. To preset the time, press the "score adjustment button" and the screen will display the score increasing from zero. If you reach the preset time you need, you can release the "score adjustment button" (or tap the preset button) and use the same method to preset the number of seconds. If the preset time exceeds the set time you need, you can operate the reset button, clear it, and reset it.
3. Press the on button to start the countdown. The screen will display a decreasing number of seconds with an audible prompt. An alarm will sound 8 seconds before the countdown ends, and the alarm will stop when the count ends. During the timing process, if you want to stop the timing, you can press the "Pause" button.
4. Rotate the dimming knob to adjust the brightness of the darkroom red light, LED light source, stable and reliable.
5. After each timer ends, the timer display time is the last timer time, and the timer operation can be repeated. If the power is turned off, the memory will disappear, and it needs to be reset after powering on
