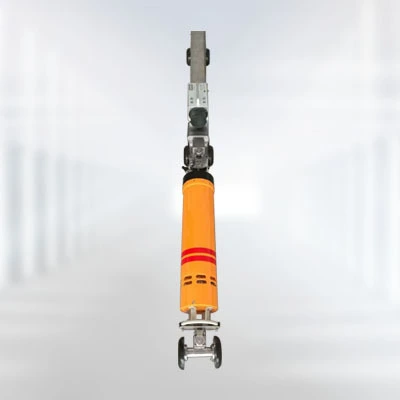

XK-CDW-170 ultra small 1605 circumferential cone target crawler
Product Features
1. The exposure, forward, and backward of the magnetic positioning device can be freely selected, breaking the previous control method that relied solely on listening to sound.
2. The magnetic positioning device has precise positioning, strong penetration power, high stability, and the magnetic transmitter is equipped with a power display.
3. The crawler can display battery voltage and determine battery usage.
4. There are fault codes available, and various faults can be directly diagnosed. Please refer to the fault code table for details.
5. Small size and light weight, more suitable for small diameter use, convenient for transportation and operation.
6. Complete protection functions; Protection against water, low battery voltage, 20 minutes of unmanned operation, undercurrent, etc.
7. Considering the convenience of on-site maintenance and the ease of replacing controllers, driver boards, etc., users can repair and replace them themselves.
8. The crawler is equipped with a false load mode with a time setting of 0.2 minutes. The crawler can simulate working under real load without connecting a pipe head, and can expose, move forward, and backward. Used for learning, comparing mouth positioning, and diagnosing faults.
9. The extended shaft adopts keyless connection, making replacement more convenient.
10. The magnetic receiver has 8 gears, which can meet the requirements of different pipe diameters.
11. The body of the crawler is mainly made of stainless steel material, with exquisite workmanship.
12. The radiation angle of the circumferential X-ray generator is large
1. The exposure, forward, and backward of the magnetic positioning device can be freely selected, breaking the previous control method that relied solely on listening to sound.
2. The magnetic positioning device has precise positioning, strong penetration power, high stability, and the magnetic transmitter is equipped with a power display.
3. The crawler can display battery voltage and determine battery usage.
4. There are fault codes available, and various faults can be directly diagnosed. Please refer to the fault code table for details.
5. Small size and light weight, more suitable for small diameter use, convenient for transportation and operation.
6. Complete protection functions; Protection against water, low battery voltage, 20 minutes of unmanned operation, undercurrent, etc.
7. Considering the convenience of on-site maintenance and the ease of replacing controllers, driver boards, etc., users can repair and replace them themselves.
8. The crawler is equipped with a false load mode with a time setting of 0.2 minutes. The crawler can simulate working under real load without connecting a pipe head, and can expose, move forward, and backward. Used for learning, comparing mouth positioning, and diagnosing faults.
9. The extended shaft adopts keyless connection, making replacement more convenient.
10. The magnetic receiver has 8 gears, which can meet the requirements of different pipe diameters.
11. The body of the crawler is mainly made of stainless steel material, with exquisite workmanship.
12. The radiation angle of the circumferential X-ray generator is large
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
specifications
1. Applicable pipe diameter (inner diameter): 170-380mm
2. Applicable wall thickness: ≤ 10 mm
3. Crawler weight per unit: ≤ 30kg (8kg pipe head+18kg crawler+4kg other connectors)
4. Crawler length: 1870mm (body 1170+pipe head 600+connection 100)
5. Optimal climbing slope: 12 degrees
6. Crawling speed: 12m/min
7. Turning radius: ≥ 15D
8. Crawling distance: ≤ 1km (round-trip)
9. Drive mode: rear wheel drive
10. X-ray machine model: Ultra small 1605 circumferential cone target (tube head diameter 135mm, height 600mm, weight 8kg)
11. Focus size: 1.0 x 3.5mm
12. X-ray radiation angle: 40 ° x 360 °
13. Exposure time: 0-3 minutes
14. Output voltage range: 60-160kv
15. Tube current: 3mA
16. Positioning accuracy: ± 5mm
17. Positioning method: Magnetic positioning method (exposure, forward, backward can be freely selected)
18. Operating environment temperature: -20 ℃ to 60 ℃
19. Storage temperature: 0 ℃ to 40 ℃
20. Battery 10AH lithium battery, output voltage 120V (battery and climbing car integrated).
21.160kv，3min， Exposure ≥ 20 times (with reserved power for walking).
22. Crawler body length 1170mm, width 140mm (including wheels), height 120mm, weight 18kg
23. The magnetic receiver is equipped with built-in 1234 gears.
24. Delay exposure for 30 seconds.
25. Unmanned operation protection for 20 minutes.
1. Applicable pipe diameter (inner diameter): 170-380mm
2. Applicable wall thickness: ≤ 10 mm
3. Crawler weight per unit: ≤ 30kg (8kg pipe head+18kg crawler+4kg other connectors)
4. Crawler length: 1870mm (body 1170+pipe head 600+connection 100)
5. Optimal climbing slope: 12 degrees
6. Crawling speed: 12m/min
7. Turning radius: ≥ 15D
8. Crawling distance: ≤ 1km (round-trip)
9. Drive mode: rear wheel drive
10. X-ray machine model: Ultra small 1605 circumferential cone target (tube head diameter 135mm, height 600mm, weight 8kg)
11. Focus size: 1.0 x 3.5mm
12. X-ray radiation angle: 40 ° x 360 °
13. Exposure time: 0-3 minutes
14. Output voltage range: 60-160kv
15. Tube current: 3mA
16. Positioning accuracy: ± 5mm
17. Positioning method: Magnetic positioning method (exposure, forward, backward can be freely selected)
18. Operating environment temperature: -20 ℃ to 60 ℃
19. Storage temperature: 0 ℃ to 40 ℃
20. Battery 10AH lithium battery, output voltage 120V (battery and climbing car integrated).
21.160kv，3min， Exposure ≥ 20 times (with reserved power for walking).
22. Crawler body length 1170mm, width 140mm (including wheels), height 120mm, weight 18kg
23. The magnetic receiver is equipped with built-in 1234 gears.
24. Delay exposure for 30 seconds.
25. Unmanned operation protection for 20 minutes.
Crawler composition and configuration
|
Serial Number |
consist of |
quantity
|
configuration |
|||||
|
1 |
Climbing car |
1piece |
controller |
1 |
electrical machinery |
1 |
||
|
2 |
x-ray generator |
1piece |
Connecting cables |
1 |
||||
|
3 |
Battery pack (built-in) |
1group |
charger |
1 |
Connecting cables |
1 |
||
|
4 |
magnetic positioning |
1set |
emitter |
1 |
charger |
1 |
receiver |
1 |
|
5 |
tool |
1bag |
||||||
|
6 |
Certificate of Conformity Manual |
1copy |
{{item.score}} Stars
{{item.pre}}%
{{item.nickname ? (item.nickname.slice(0, 2) + '*****') : item.source === 1 ? 'mall buyer' : '--'}}
{{item.comment_time}}
Review in the {{item.country}}
{{itemAttr.params_key}}: {{itemAttr.params_value}}
We Supply After-Sales Service For 24 Hours, 7 Days Per Week.
info@servereal-instruments.com
+86-18014755745
