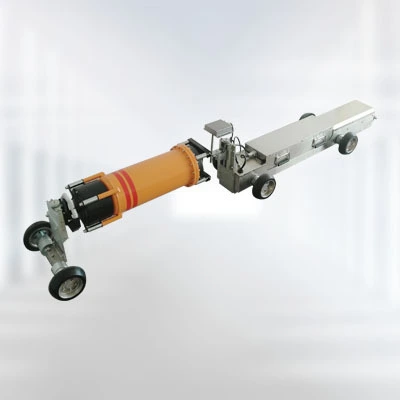

XK-CDW-I Type 2005 Circumferential Cone Target Crawler
Product Features
1. The exposure, forward, and backward of the magnetic positioning device can be freely selected, breaking the previous control method that relied solely on listening to sound.
2. The magnetic positioning device has precise positioning, strong penetration power, high stability, and the magnetic transmitter is equipped with a power display.
3. The crawler can display battery voltage and determine battery usage.
4. There are fault codes available, and various faults can be directly diagnosed. Please refer to the fault code table for details.
5. Small size and light weight, more suitable for small diameter use, convenient for transportation and operation.
6. Complete protection functions; Protection against water, low battery voltage, 20 minutes of unmanned operation, undercurrent, etc.
7. Considering the convenience of on-site maintenance and the ease of replacing controllers, driver boards, etc., users can repair and replace them themselves.
8. The crawler is equipped with a false load mode with a time setting of 0.2 minutes. The crawler can simulate working under real load without connecting a pipe head, and can expose, move forward, and backward. Used for learning, comparing mouth positioning, and diagnosing faults.
9. The extended shaft adopts keyless connection, making replacement more convenient.
10. The magnetic receiver has 8 gears, which can meet the requirements of different pipe diameters.
11. The body of the crawler is mainly made of stainless steel material, with exquisite workmanship.
12. The radiation angle of the circumferential X-ray generator is large.
1. The exposure, forward, and backward of the magnetic positioning device can be freely selected, breaking the previous control method that relied solely on listening to sound.
2. The magnetic positioning device has precise positioning, strong penetration power, high stability, and the magnetic transmitter is equipped with a power display.
3. The crawler can display battery voltage and determine battery usage.
4. There are fault codes available, and various faults can be directly diagnosed. Please refer to the fault code table for details.
5. Small size and light weight, more suitable for small diameter use, convenient for transportation and operation.
6. Complete protection functions; Protection against water, low battery voltage, 20 minutes of unmanned operation, undercurrent, etc.
7. Considering the convenience of on-site maintenance and the ease of replacing controllers, driver boards, etc., users can repair and replace them themselves.
8. The crawler is equipped with a false load mode with a time setting of 0.2 minutes. The crawler can simulate working under real load without connecting a pipe head, and can expose, move forward, and backward. Used for learning, comparing mouth positioning, and diagnosing faults.
9. The extended shaft adopts keyless connection, making replacement more convenient.
10. The magnetic receiver has 8 gears, which can meet the requirements of different pipe diameters.
11. The body of the crawler is mainly made of stainless steel material, with exquisite workmanship.
12. The radiation angle of the circumferential X-ray generator is large.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
specifications
Applicable pipe diameter: 273-600mm (customizable up to 800mm)
Penetrating wall thickness: ≤ 12 mm
Crawler single machine weight: ≤ 70kg [tube head 12kg+crawling cart 28kg+7-ampere hour battery 21kg+front wheel 6kg]
Crawler length: 1800mm (body 1100+pipe head 550+connection 150)
Best climbing slope: 12 degrees
Crawling speed: 12m/min
Turning radius: ≥ 10D
Non exposure walking distance: ≤ 1km (round-trip)
Drive mode: rear wheel drive
X-ray machine model: ultra small 2005 circumferential cone target
Focus size: 1 x 3.5mm
X-ray radiation angle: 40 degrees x 360 degrees
Exposure time: 0-3 minutes
Output voltage range: 100-200kv
Positioning accuracy: ± 5mm
Positioning method: Magnetic positioning method (exposure, forward, backward can be freely selected)
Operating environment temperature: -20+65 ℃
Storage temperature: 0+40 ℃
The two sets of batteries are 9 ampere hours (21kg) and 12 ampere hours (42kg) respectively, with an output voltage of 110 volts.
Applicable pipe diameter: 273-600mm (customizable up to 800mm)
Penetrating wall thickness: ≤ 12 mm
Crawler single machine weight: ≤ 70kg [tube head 12kg+crawling cart 28kg+7-ampere hour battery 21kg+front wheel 6kg]
Crawler length: 1800mm (body 1100+pipe head 550+connection 150)
Best climbing slope: 12 degrees
Crawling speed: 12m/min
Turning radius: ≥ 10D
Non exposure walking distance: ≤ 1km (round-trip)
Drive mode: rear wheel drive
X-ray machine model: ultra small 2005 circumferential cone target
Focus size: 1 x 3.5mm
X-ray radiation angle: 40 degrees x 360 degrees
Exposure time: 0-3 minutes
Output voltage range: 100-200kv
Positioning accuracy: ± 5mm
Positioning method: Magnetic positioning method (exposure, forward, backward can be freely selected)
Operating environment temperature: -20+65 ℃
Storage temperature: 0+40 ℃
The two sets of batteries are 9 ampere hours (21kg) and 12 ampere hours (42kg) respectively, with an output voltage of 110 volts.
Crawler composition and configuration
|
Serial Number |
consist of |
quantity |
configuration |
|||||
|
1 |
Climbing car |
1piece |
controller |
1 |
electrical machinery |
1 |
||
|
2 |
x-ray generator |
1piece |
Connecting cables |
1 |
||||
|
3 |
Battery pack (built-in) |
1group |
charger |
1 |
Connecting cables |
1 |
||
|
4 |
magnetic positioning |
1set |
emitter |
1 |
charger |
1 |
receiver |
1 |
|
5 |
tool |
1bag |
||||||
|
6 |
Certificate ofConformity Manual |
1copy |
