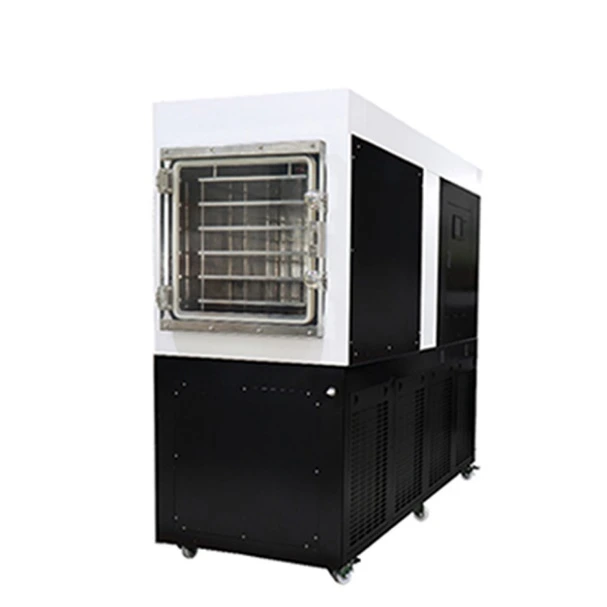

2㎡ Production Freeze Dryer
Using imported compressors for fast cooling, higher refrigeration efficiency, and better reliability;
Selecting fluorine free refrigerants to meet environmental requirements.
Specification
|
Model |
LFD-200F |
LFD-200FT |
|
Specifications |
Ordinary silicone oil heating |
Gland type silicone oil heating |
|
Freeze-dried area |
2㎡ |
|
|
water capture capacity |
30kg/batch |
|
|
Vial volume ( 12mm) |
14000 pieces |
|
|
Vial capacity ( 16mm) |
8000 pieces |
|
|
Vial capacity (22mm) |
4100 pieces |
|
|
plate solution |
30L |
|
|
Layer size (length mm) |
900 |
|
|
Layer size (width mm) |
500 |
|
|
Layer spacing (mm) |
60mm |
|
|
Number of layers (blocks) |
6+1 block |
|
|
Laminate temperature range (°C) |
-55°C~70°C (no load) |
|
|
Cold trap minimum temperature (°C) |
-80°C (no load) |
|
|
Ultimate vacuum |
≤10PA (no load) |
|
|
Power Kw |
8Kw (380V) |
|
|
Ambient temperature (°C) |
≤25°C |
|
|
Dimensions mm |
1250x1200x1550mm |
|
|
Matching vacuum pump |
8L/S |
|
|
Machine weight (kg) |
500kg |
|
