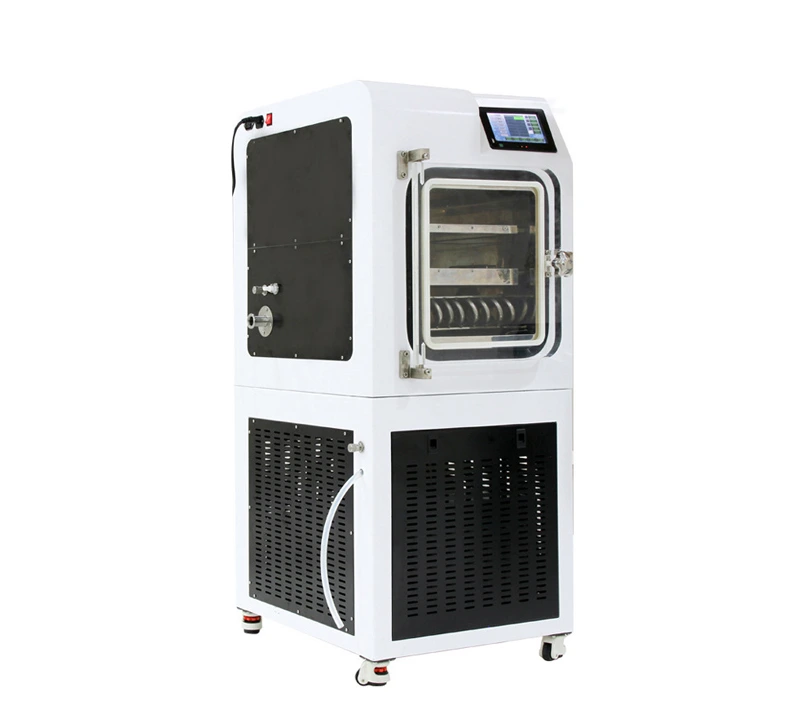

Freeze dryer 0.2㎡/0.5㎡/1㎡/2㎡
● 7-inch color LCD touch screen, the important parameters (cold trap temperature, sample temperature, vacuum degree, partition temperature) are intuitively visible;
● Manual and automatic operation can be switched at will, and one machine has multiple functions;
● Industrial-grade PLU controller, stable and reliable, with strong anti-interference;
● The compressor and vacuum pump circuit independently control the protection program to prevent the compressor from being frequently started and stopped due to misoperation;
● The freeze -drying data is automatically saved, viewed in real time, the history is reproduced, and the freeze -drying process is clear and controllable;
Specifications
|
Model |
LFD-100FT |
LFD-200F |
|
Specifications |
Gland type silicone oil heating |
Ordinary silicone oil heating |
|
Freeze-dried area |
1㎡ |
2㎡ |
|
water capture capacity |
23kg/batch |
30kg/batch |
|
Vial volume ( 12mm) |
7380 pieces |
14000 pieces |
|
Vial capacity ( 16mm) |
3880 pieces |
8000 pieces |
|
Vial capacity (22mm) |
2040 pieces |
4100 pieces |
|
plate solution |
15L |
30L |
|
Layer size (length mm) |
480 |
900 |
|
Layer size (width mm) |
360 |
500 |
|
Layer spacing (mm) |
60mm |
60mm |
|
Number of layers (blocks) |
6+1 block |
6+1 block |
|
Laminate temperature range (°C) |
-55°C~70°C (no load) |
-55°C~70°C (no load) |
|
Cold trap minimum temperature (°C) |
-80°C (no load) |
-80°C (no load) |
|
Ultimate vacuum |
≤10PA (no load) |
≤10PA (no load) |
|
Power Kw |
6.8Kw (380V) |
8Kw (380V) |
|
Ambient temperature (°C) |
≤25°C |
≤25°C |
|
Dimensions mm |
1250x850x1550mm |
1250x1200x1550mm |
|
Matching vacuum pump |
15L/S |
/ |
|
Machine weight (kg) |
600kg |
/ |
