20E 20SM  Immersion constant temperature cycler 1
20E 20SM  Immersion constant temperature cycler 1

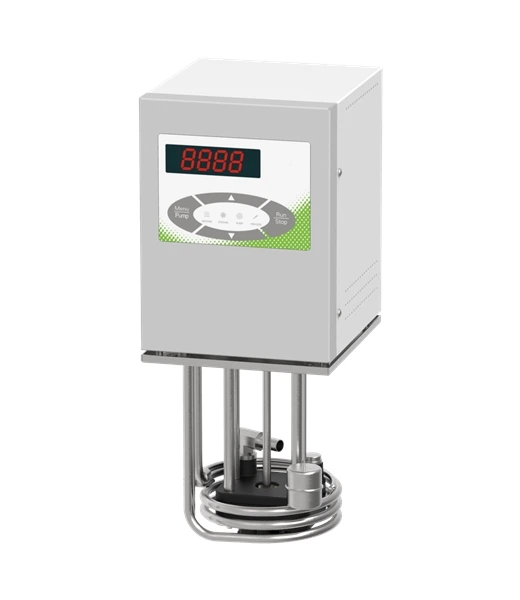

20E 20SM Immersion constant temperature cycler

Immersion constant temperature cycler/controller is a multifunctional heating device that provides heating, stirring, temperature measurement, temperature control, and circulation. It can be used alone or in conjunction with various specialized baths (such as stainless steel baths, transparent polycarbonate baths, and organic glass baths). The instrument can be easily and quickly installed on any bath using a threaded back clamp, achieving precise temperature control of samples in the bath; Used in conjunction with a cooling constant temperature cycler, with a minimum temperature of -20 ° C. All models come with powerful pressure and suction pumps, meeting the safety level III of DIN12876 standard (FL can use flammable liquids). The pump adapter can be used for external circulation temperature control, and the cooling coil can be configured to connect to the cold water source.

    oops...!

    no product data.

    Go to homepage
    Product Features
    1. Small in size, the instrument can be easily installed on different sinks through threaded back clamps;
    2. Powerful pressure/suction pump;
    3. Good temperature control stability;
    4. Flammable liquids can be used in accordance with safety level III (FL) of DIN12876 standard;
    5. Convenient application of internal and external circulation;
    6. High and low temperature alarm function;
    7. Over temperature automatic cut-off/anti dry burning function;
    8. Low liquid level alarm function;
    9. Multi point calibration function;
    10. When an alarm is triggered, both the light and sound will alert;
    11. Adjustable safe temperature range for safer use;
    12. Multiple communication interfaces can be configured (RS232/USB)

    Specifications

    Product Model

    Temperature Range
    [ºC]

    Temperature stability
    [ºC]

    Heating power
    [W]

    Pump flow rate
    [L/Min]

    Pump pressure
    [bar]

    Pump suction
    [bar]

    immersion depth
    [mm]

    External dimensions
    (W x D x H)
    [mm]

    HW-CHM-20E

    RT+10...100

    ±0.05

    2000

    12

    0.2

    0.1

    63...130

    136 x151x 336

    HW-CHM-20SM

    RT+10...150

    ±0.03

    2000

    22

    0.3

    0.2

    63...130

    136 x151x 336

    HW-CHM-20SH

    RT+10...200

    ±0.03

    2000

    22

    0.3

    0.3

    63...130

    136 x151x 336

    HW-CHM-20AH

    RT+5...200

    ±0.02

    2000

    0...33.3

    0...0.7

    0...0.4

    63...130

    136 x151x 336
