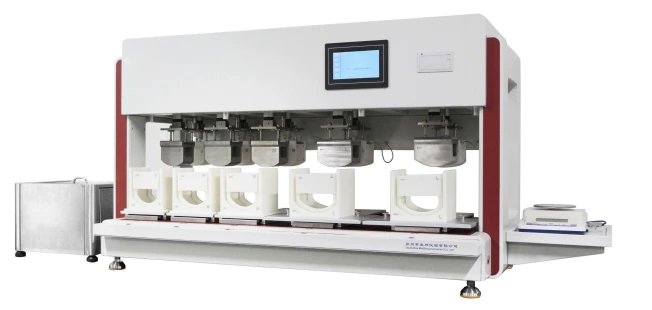

5-stations Diaper Penetration Tester

Features

1. The instrument adopts touch screen control, Chinese and English menus, man-machine dialogue mode, and convenient operation.

2. Five stations for testing, the liquid addition amount and flow rate of each station can be set individually.

3. Five independent motor and five dosing pumps can measure different types of samples at the same time, including adults or children

4. Fully automatic test, which can automatically add liquid and test and press weight.

5. High-precision peristaltic pump to ensure the accuracy of penetrating liquid volume.

6. The electrode is made of platinum electrode, the induction is good, and the electrode is automatically positioned.

7. Using stepping motor and high-precision ball screw drive, the stroke control is accurate.

8. Automatic data processing, which can obtain the test average, standard deviation and coefficient of variation.

9. Built-in high-precision balance, after weighing, the leakage and re-seepage can be calculated directly.

10. The water tank has a built-in heating tube and a liquid level gauge to accurately control the temperature and remind the low liquid level.

11. Built-in thermal printer, convenient to quickly print test results on site.

Specfication

1. Accuracy of timing device: 0.01s

2. Liquid addition device: deviation of liquid addition volume ±2mL, liquid addition flow rate: 200~800mL/min

3. Standard test module:

4. Sample base

5. The precision of the balance is 0.01g, and the range is 300g

6. Dimensions: 1714×761×827mm

7. Weight: 290kg

8. Power supply: AC220V 50Hz 1000W
