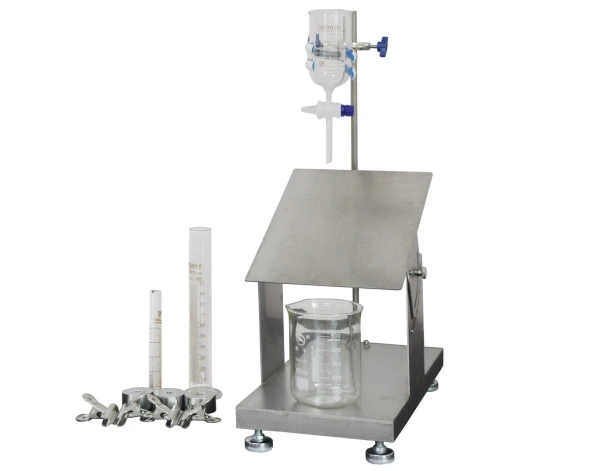

GB/T Diapers and Pads Penetration Resistance Tester

This equipment is used to determine the slippage, wetback and leakage properties of diapers and diapers/pads for infants and adults.

Model

FZ-W2493

Standard

QB/T 2493, GB/T 28004, GB/T 30133

ISO 9073-14 Textiles - Test methods for nonwoven fabrics - Part 14 Moisture resistance of facing materials

Features

1. Stainless steel material, rust-proof and durable.

2. The angle of the sample plate is adjustable.

Specfication

Standard discharge funnel	(1) Standard funnel for adult products 150Ml (standard) (2) Standard funnel for baby products 80Ml (optional) (3) Standard liquid funnel for sanitary napkin surface material 60Ml (optional)
Standard briquetting block	φ100mm, mass (1.2±0.002) kg (can generate 1.5kPa pressure)
Test board size	200×280 mm
Sample plate angle	0 to 70 degrees
Dimensions	200×380×560mm
Weight	4kg
