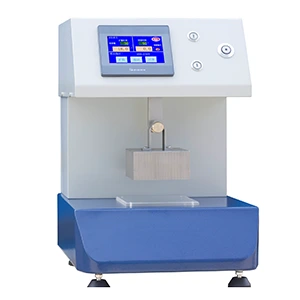

ISO Coverstock Wetback Tester

This equipment is used to test the ability of coverstock material to resist the transport back onto the skin of a liquid that has already penetrated the coverstock.

Model

FZ-W069

Standard

GB/T 24218.14 Textiles - Test methods for non-woven fabrics - Part 14 Determination of moisture content of covering materials

ISO 9073-14 Textiles - Test methods for nonwoven fabrics - Part 14 Moisture resistance of facing materials

Inquiry

Write a Review

Features

Intelligent touch screen control, man-machine dialogue mode, easy to operate.

Electric test, lift the sample when the simulated baby load is placed, and the test will be completed automatically.

All stainless steel load hammer, corrosion resistance

Double displacement system, weight lifting system and position adjustment system, can adjust the relative position arbitrarily.

Specfication

Simulated baby load weight and size	4000g±20g (10×10cm)
The effective movement of the weight relative to the lifting of the sample	5cm
Lifting speed	60mm/min
Placement and stay time can be set	1~999s
Tray size	170mm×170mm
Dimensions	430×410×540mm
Weight	51kg
