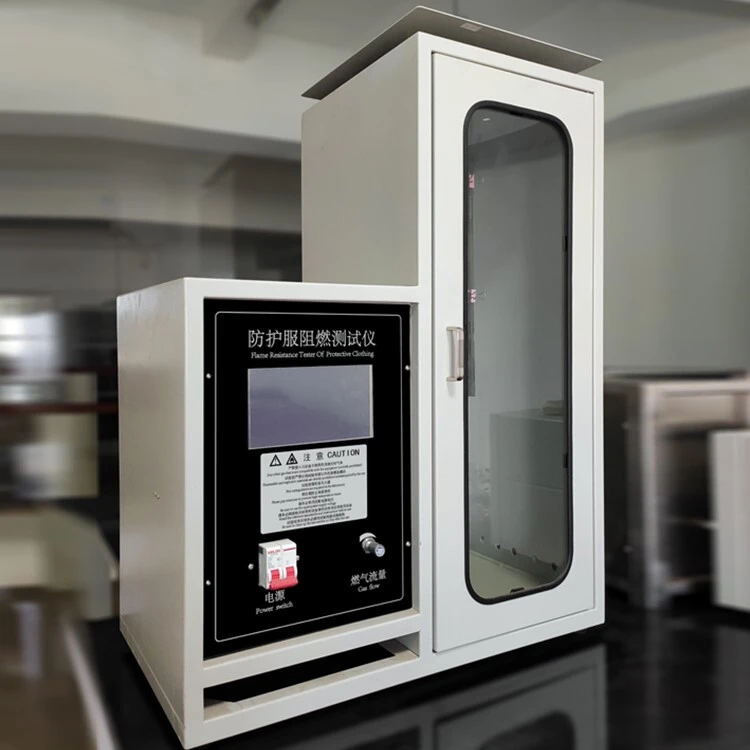

ASTM D6413 Fabrics Vertical Flame Retardant Tester

Specifications

1. Touch screen display/control

2. The front of the combustion chamber is equipped with a tempered glass observation door

3. There are 16 exhaust holes evenly distributed on the top of the box, with an inner diameter of 12.5mm; There are 6 exhaust holes distributed on both sides of the combustion chamber, with an inner diameter of 12.5mm

4. Install top plate on the top of the box

5. The top of the box is equipped with a bracket that can support hanging style clamps

6. The inner diameter of the igniter nozzle is 10mm. Ignition time: accurate to 0.5 seconds

7. The flame application time of the Bunsen lamp is 0-99M99S, which can be set arbitrarily with an accuracy of ± 0.1s

8. Afterglow time: Maximum 0-99M99S

9. Bensheng lamp blue flame height: 15mm-175mm, adjustable at will, equipped with flame height ruler (40mm high)

10. The Bunsen burner automatically ignites, timing automatically, and the ignition time can be set arbitrarily (preset)

11. Touch screen related parameters:

a. Size: 7 inches, effective display size: 15.5cm in length and 8.6cm in width;

b. Resolution: 800 * 480

c. Communication interface RS232, 3.3V CMOS or TTL, serial port mode

d. Storage capacity: 1G

e. Using pure hardware FPGA driver display, with "zero" startup time, can run on power

f. Adopting M3+FPGA architecture, M3 is responsible for instruction parsing, and FPGA focuses on TFT display

g. The main controllers all use low-power processors and automatically enter energy-saving mode
