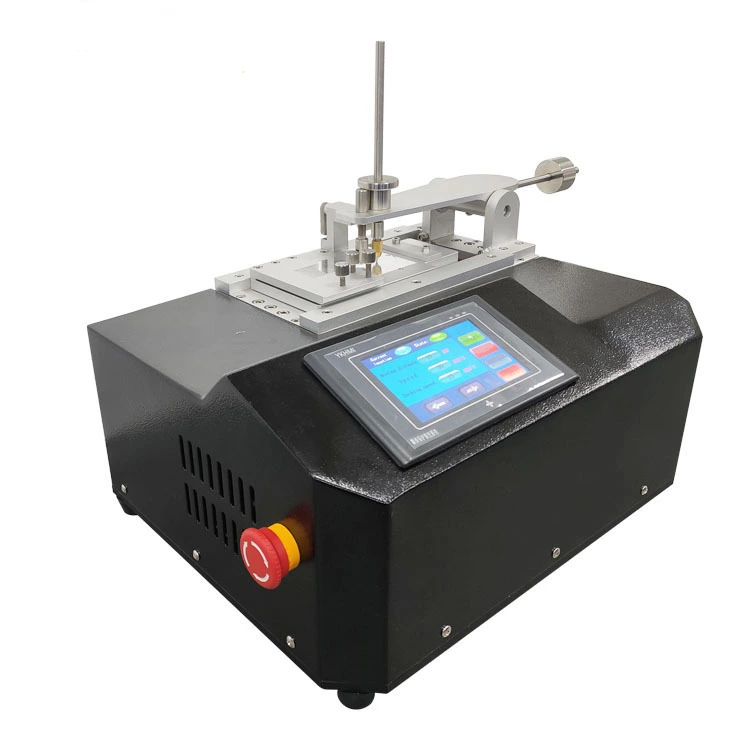

Automatic Scratch Tester
Model: TL-ZHY02
Standards:ISO1518-1, BS3900, EN61558, GB4943, GB4760.1, IEC60335
Features
1. Touch screen display, which can directly set parameters on the screen for convenient operation.
2. It can display the test results on the screen in real time, and directly display OK or NG.
3. Adjustable working platform - more convenient
4. Display the test results on the conductive substrate
5. High hardness scriber - more durable
6. Special sample holder design, easy to operate
Optional scratch stylus
Scratch stylus A (with a hemispherical hard metal tip with a radius of 0.50mm ± 0.01mm)
Scratch meter scratch stylus B (with a hemispherical hard metal tip with a radius of 0.25mm ± 0.01mm
Scratch stylus C (with hemispherical artificial ruby tip with radius of 0.50mm ± 0.01mm)
Scratch instrument scratch stylus D (with hemispherical artificial ruby tip with a radius of 0.25mm ± 0.01mm)
Scratch stylus E (tapered diamond with tip radius of 0.03mm ± 0.005mm)
Specifications
|
Scratch speed |
0~40mm/s (settable) |
|
Moving distance |
0~65mm (settable) |
|
Needle tip pressure |
10 ± 0.5N |
|
Weight of weight |
50g~2500g (optional) |
|
Scratch pen material |
tungsten carbide hemispherical, radius 0.25 ± 0.02mm (or customized) |
|
Size of metal test plate |
100 × 150× 0.2mm (L * W * H) |
|
Machine size |
500 * 400 * 450mm |
|
Machine weight |
about 22KG |
|
Power supply |
220v/50hz or 110v/60hz |
