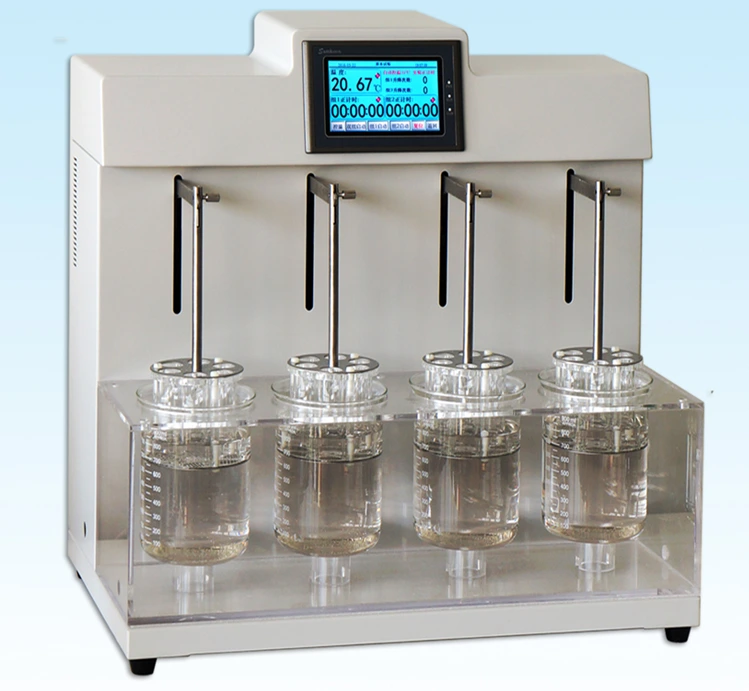

BJ Intelligent Disintegration Tester
Features
High definition colorful touch screen, intelligent interactive operation
4 work station, two basket as a group, can process in 2 independent group or sync test of 4 baskets
Two work mode available, basic mode and programmable mode, basic default temperature 37C, suitable for research type test. And programmable test can set any temperature and timing range, and save automatically, countdown timing, easy for normal repeated test.
Real time indication of hanging basket, easier for monitoring
When test over, hanging basket stopped at the highest position, easy for loading of basket and flask cup.
Timing shutdown and automatic preheat
Automatic temperature calibration, user can calibrate instrument by themselves
Alarm to abnormal temperature, temperature over limit and secondary overheat automatic protection function
Real time indication
English operation interface available
Technical specifications
|
Power supply |
AC 220V±10% 50Hz ≤800W |
|
Basket number |
2, 4,6 available |
|
Ambient condition |
RT 10-30 C, humidity <75% |
|
Timing range |
freely set within 24hours, accurate to second |
|
Timing accuracy |
<3s in 24hours |
|
Temperature range |
5℃～45℃, indicating resolution 0.01℃ |
|
Temperature control accuracy |
≤±0.3℃ |
|
Hanging basket lift frequency |
30-32 times/min, real time indication |
|
Hanging basket lift amplitude |
55mm |
|
Lifting amplitude accuracy |
≤±0.5mm |
|
Sieve to cup bottom distance |
25mm |
|
Screen aperture |
2mm, 0.425mm (1mm optional) |
