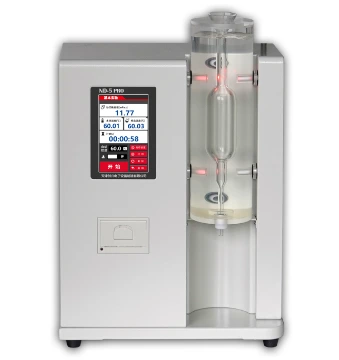

Bloom Viscosity Tester with Automatic Correction Function
Applicable standards：GB6783 GB13731 QB2354 QB/T1995 QB/1996 QB1997
Features
Laser distance measurement test the gelatin fluid flow, automatic display the Bloom viscosity value, accurate measurement, good repeatability, good visibility, easy operation.
Wide application range in medicine, chemical industry.
Automatic correction of the nonlinearity error of Jacket temperature, automatic monitoring and error alarm, automatic real time over range protection
Delivered with calibration of capillary viscometer, and the error offset coefficient are already written into the program and will be included into the calculation formula.
Technical specifications
|
Viscosity measurement range |
0-999.99 mPa.s |
|
Resolution of viscosity value display |
0.01mPa.s |
|
Instrument measurement accuracy |
±0.02mPa.s |
|
Time measurement range |
0-5000 seconds |
|
Time measurement accuracy |
≤0.01 seconds |
|
Time display resolution |
millisecond |
|
Real time date and time display of the system |
24-hour error ≤ 3 seconds |
|
Temperature control range of water bath |
Room temperature -70 ℃ |
|
Water bath temperature control setting resolution |
0.1℃ |
|
Temperature control accuracy of water bath |
±0.1℃ |
|
Water bath temperature display resolution |
0.01℃ |
|
Viscometer volume |
100 ml |
|
Volume error of viscometer |
±0.5ml |
|
Measurement device longitudinal center moment |
152 mm ±0.5 mm |
|
Working power supply |
AC 220V ± 10% 50Hz ≤ 500W |
|
Ambient condition |
Room temperature 10-30 ℃, humidity<75% |
|
External dimensions |
365x215x535mm (L * W * H) |
|
Overall weight |
Approximately 12 kg |
