Profesional manufacturer & supplier for test equipment & analytical instruments since 2003.

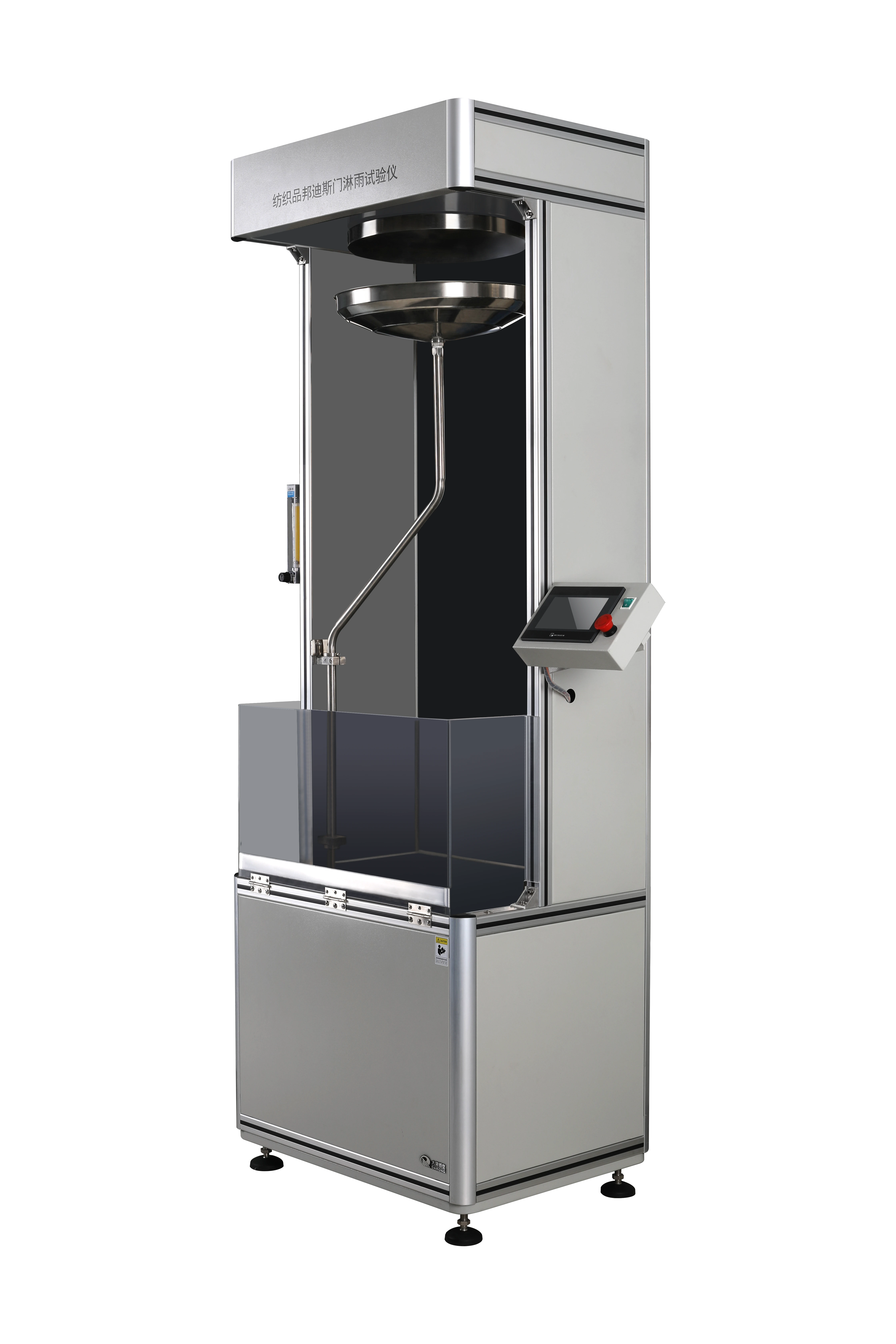

Bundesmann Water Repellency Tester ISO9865 BS EN 29865 DIN53888 JIS L1092
Standards GB/T14577 ISO9865 BS EN 29865 DIN53888 JIS L1092
Model: FZ-813B
Features
1. 7-inch color touch screen with menu
style operation in both Chinese and English;
2. The contact area is made of all
stainless steel;
3. Dripper pre exhaust device;
4. Automatic sample wiper;
5. Four 15 degree tilt test cups;
6. Easy to install sample holder;
7. Equipped with water filtration device.
Specifications
|
Rainfall area |
about 1300cm2 |
|
Drip device |
300 |
|
Rainfall (per 100cm2) |
100~300ml/min (adjustable) |
|
Specimen of test piece |
diameter 140mm |
|
Test area |
about 80cm2 |
|
Diameter of test sample cup |
100mm |
|
Installation angle of test sample cup |
15 degree |
|
Rotation speed of test sample cup |
6r/min |
|
Cross-shaped wiper specifications |
48×5mm |
|
Rotation speed of wiper |
about 20r/min |
|
The friction pressure of the wiper is |
about 2.5N |
|
Test time |
display on the screen |
|
Power supply |
AC 220V 50Hz 200W |
|
Machine Dimensions |
600×800×2350mm |
|
Weight |
about 190kg |
