Internal pressure tester of bottle ISO 11607-2 ASTM F1140 ASTM F2054 ISO11607
Test standards
GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1868, QB/T1871, ISO 11607-2, ASTM F1140, ASTM F2054, ISO11607, YBB 00252005, YBB 001620026

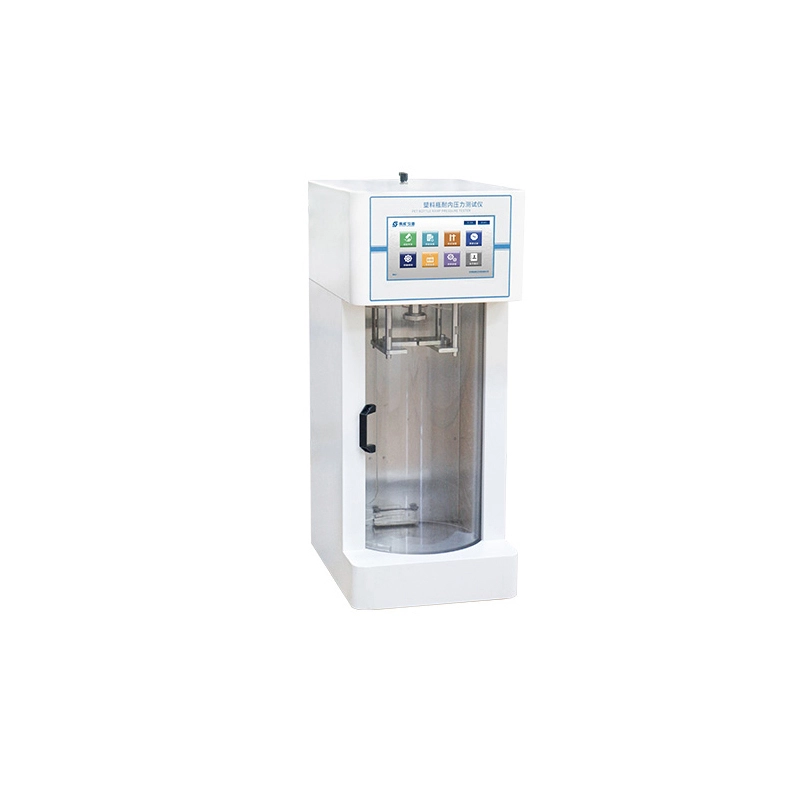

Model: BZ-NY02
10 inch touch screen operation, user-friendly design
One click operation during the experimental process, improving the efficiency of intelligent testing
High definition touch screen display of experimental data, automatic statistics and printing of results
Testing supports dual modes of pressure maintaining and crushing, compatible with diversity
The instrument is equipped with an SMC booster pump, with a maximum pressure of up to 1.6MPa
Support for PET bottle cap automatic puncture positive pressure method
The instrument is opened by revolving door, which is safe and fast
Standard USB interface configuration, computer software support, results displayed in multiple units
By injecting a certain pressure gas into a plastic beverage bottle sample and holding it for a certain time, the pressure tester automatically determines whether the sample is sealed properly or the maximum pressure value during explosion.
This instrument meets multiple national and international standards: GB/T 10440, GB/T 18454, GB/T 19741, GB/T 17447, GB/T 17876, GB/T 10004, BB/T 0025, QB/T 1868, QB/T1871, ISO 11607-2, ASTM F1140, ASTM F2054, ISO11607, YBB 00252005, YBB 001620026
|
Test scope |
0 ~ 1.6 MPa |
|
Measurement accuracy |
±0.5% |
|
Sample size |
Height ≤ 340mm, diameter ≤ 200mm, bottle mouth size 26mm (customizable) |
|
Air supply pressure |
0.8MPa (provided by the gas source user) |
|
Air connection |
Φ 6mm polyurethane pipe |
|
Overall dimensions |
350 mm(L) × 400 mm(W) × 600 mm(H) |
|
Power supply |
AC 220 V 50 Hz |
|
Net weight |
30 kg |
