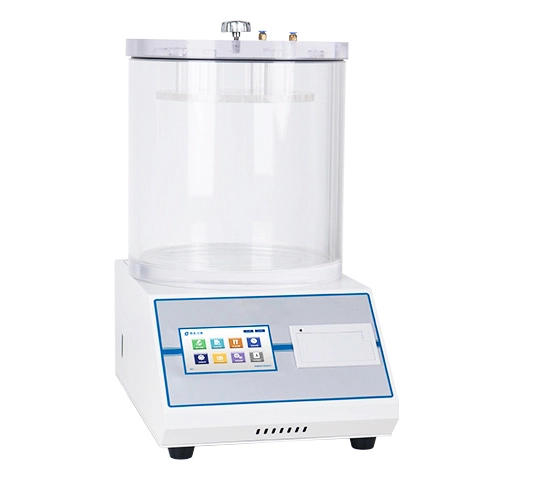

Air tightness tester ASTM D3078
Applications
Suitable for overall sealing test of glass bottles, tubes, cans, and boxes
Suitable for overall sealing test of plastic bottles, tubes, cans, and boxes
Applicable to the overall sealing test of metal material bottles, tubes, cans, and boxes
Suitable for sealing test of paper plastic composite bags and box materials
Features
• 5-inch color touch
screen, user-friendly operation more convenient
• Built-in air
source unit is adopted, without external air source, plug in and use
• The system adopts
electronic intelligent control, and fully automatic operation of pressure
pumping, multi-stage pressure maintaining, pressure compensation, timing,
blowback and printing
• The equipment is
equipped with a LCD screen, with a micro printer, supporting data presetting
and power-off memory to ensure the accuracy of test data
• The system
reserves USB interface, which can print and output test data to meet different
customer needs
Specifications
|
Display |
5inch color touch screen |
|
Vacuum |
0 ~ -90kPa |
|
Accuracy |
±1 % |
|
Vacuum chamber effective size |
Φ270 mm × 210 mm (H), others can be
custom mde |
|
Air source port |
Φ6 mm PU tube |
|
Outer dimensions |
300 mm(L) × 380 mm(B) × 450 mm(H) |
|
Power supply |
AC 220 V 50 Hz |
|
Net weight |
30 kg |
