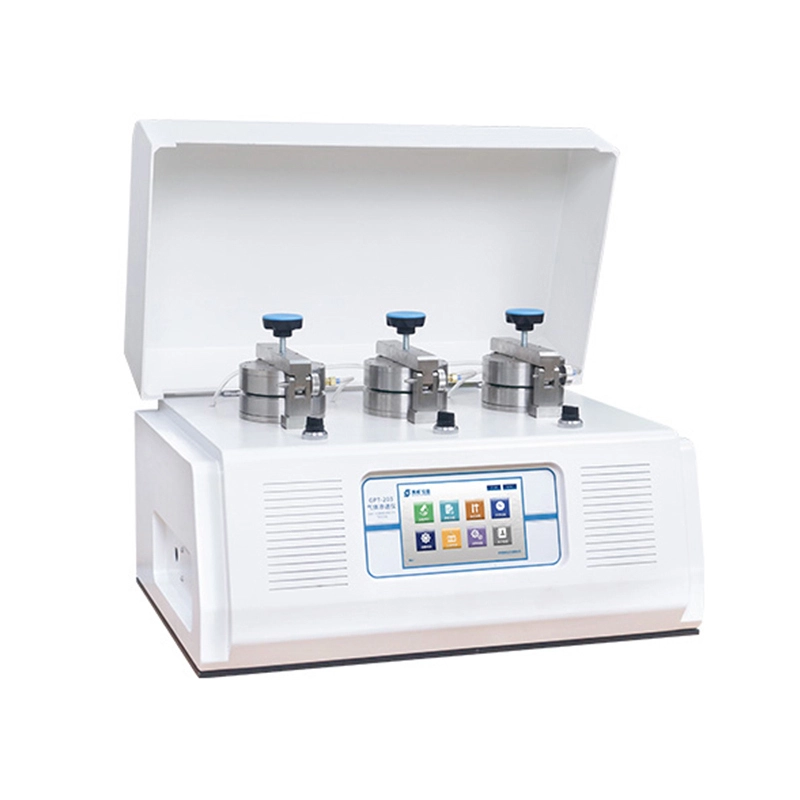

Gas permeability tester ISO 15105-1 ISO 2556 ASTM D1434 JIS K7126-1 differential pressure method
• The gas permeability and gas permeability coefficient of the sample can be measured simultaneously
• Fully independent testing of three test chambers
• Wide range and high-precision temperature and humidity control to meet the test under various test conditions
• Three test process judgment modes are provided, namely, proportion mode, fuzzy mode and time mode
• The test range can be expanded as required to meet the requirements of high transmittance test
• Support the test of toxic gas and flammable and explosive gas (to be customized)
Pneumatic clamping is adopted for sample, which is convenient and fast
• The system adopts electronic intelligent control, and the whole test process is completed automatically
• Provide standard membrane for rapid calibration to ensure the accuracy of test data
• The product complies with GMP multi-level authority
• Micro printer, note printing test statistical results at any time
• Special computer communication software, which can perform real-time display of test, data analysis and processing, and data storage
• Equipped with USB universal data interface for convenient data transfer
The instrument adopts the principle of differential pressure method, and places the pre processed sample between the upper and lower test chambers for clamping. First, vacuum the low pressure chamber (lower chamber), and then vacuum the whole system; When the specified vacuum degree is reached, close the lower test chamber, fill the high-pressure chamber (upper chamber) with test gas of a certain pressure, and ensure that a constant differential pressure (adjustable) is formed on both sides of the sample; In this way, the gas will permeate from the high pressure side to the low pressure side under the effect of the differential pressure gradient. Through the monitoring of the internal pressure of the low pressure side, various barrier parameters of the tested sample can be obtained.
|
Basic |
|
|
Film |
It is applicable to the gas permeability test of various plastic film, plastic composite film, paper plastic composite film, coextrusion film, aluminized film, aluminum foil, aluminum foil composite film and other film materials |
|
Sheet |
It is applicable to the gas permeability test of various engineering plastics, rubber, building materials and other sheet materials, such as PP sheet, PVC sheet, PVDC sheet, etc |
|
Extension |
|
|
Many different gases |
It is suitable for the transmittance test of various gases, such as oxygen, carbon dioxide, nitrogen, air, helium, etc |
|
Flammable and explosive gas |
It is suitable for testing the barrier performance of various films against flammable and explosive gases |
|
Biodegradable membrane |
Applicable to the air permeability test of biodegradable films, such as starch biodegradable bags |
|
Aerospace materials |
It is applicable to the gas permeability test of aerospace materials, such as helium permeability test of airship airbags |
|
Paper and cardboard |
It is applicable to the air permeability test of paper, paper plastic and other composite materials, such as cigarette pack aluminum foil, Tetra Pak packaging sheet, instant noodle paper bowl, disposable paper cup, etc |
|
Film |
It is applicable to the air permeability test of paint film coated on the substrate |
|
Glass fiber cloth, glass fiber paper and other materials |
It is applicable to the air permeability test of glass fiber cloth, glass fiber paper and other materials, such as Teflon coated cloth, Teflon high-temperature cloth, fluorosilicone tape, etc |
|
Cosmetic hose sheet |
It is applicable to the gas permeability test of various cosmetic hoses, aluminum plastic tubes, toothpaste tubes and sheets |
|
Various rubber sheets |
It is applicable to the air permeability test of various rubber sheets, such as the air permeability test of automobile tires |
|
Test range |
0.1~10,000 cm3/m2 · 24h · 0.1MPa (conventional) |
|
The upper limit is not less than 60000 cm3/m2 · 24h · 0.1MPa (expanded volume) |
|
|
Number of samples |
3pcs（Independent data）3pcs() |
|
Vacuum resolution |
0.05 Pa |
|
Vacuum degree of test chamber |
<10 Pa |
|
temperature range |
10 ~ 60°C |
|
control accuracy |
±0.1°C |
|
Sample size |
Φ95 mm |
|
Transmissive area |
33.18 cm2 |
|
Test gas |
O2,N2,CO2 etc (prepared by user） |
|
Test pressure |
0.4 MPa ~ 0.6 MPa |
|
Interface size |
Ф6 mm Polyurethane pipe |
|
Overall dimensions |
600 mm (L) × 475 mm (W) × 450 mm (H) |
|
Power Supply |
AC 220V 50Hz |
|
Net weight |
75 kg |
Standard configuration: host, professional software, communication cable, special sampler, vacuum grease, fast quantitative filter paper, vacuum pump, temperature control device, micro printer
Options: sampling blade, vacuum pump oil, humidity generator
Remarks: The air supply inlet of this machine is Ф 6mm polyurethane pipe; Gas source and distilled water provided by users
