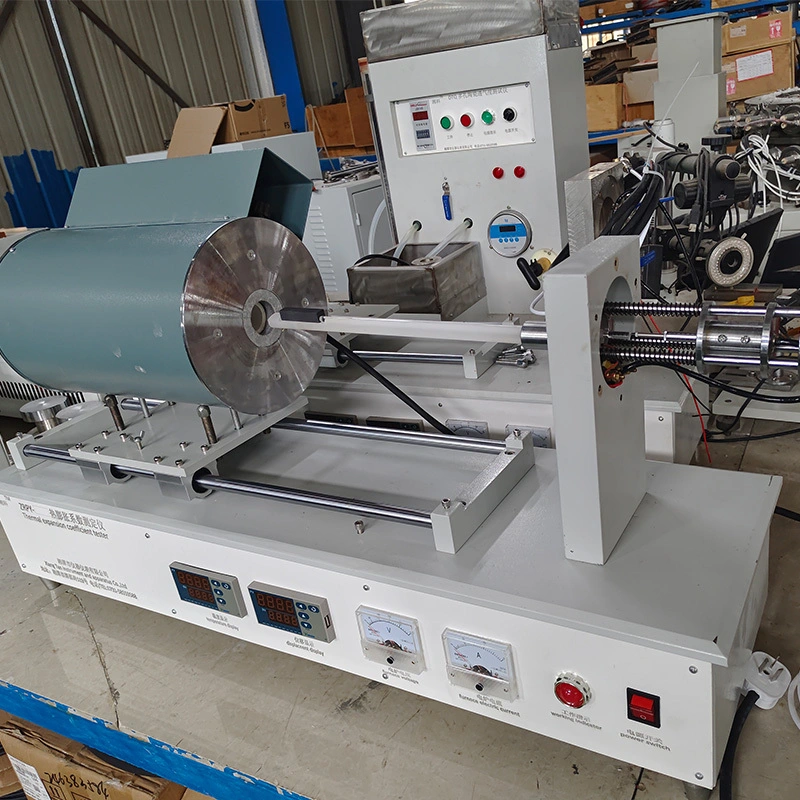

Ceramic Thermal Expansion Tester
Standards
GB/T16920-1997, GB/T 7320-2008, ISO 10545.8-1994, GB/T3810.8-2016, GB/T4399-2008
This instrument is used to determine the thermal expansion and shrinkage performance of metal and nonmetal materials, such as ceramics, glass, rock, fireproof materials. Automatic calculation of Expansion coefficient, volume expansion, linearity expansion.
Automatic data record, storage, print, temperature-expansion coefficient curve generation. All test operated on computer via test software.
Technical Specifications
|
Test Temperature |
RT-1000℃, 1400℃,1600℃,1700℃ |
|
Temperature Rise Rate |
0-20 Degree C /min settable, ±1℃, programmable controlled by MCU |
|
Deformation Measuring Range |
±2.5mm |
|
Displacement Sensor |
Sensitivity 0.1um, measuring accuracy 0.5um, automatic measuring range calibration Automatic calculation of offset coefficient, also can be corrected by human |
|
Specimen Size |
Ф6～10×50mm, 10×10×50mm, can be square or cylindrical |
|
Power Supply |
AC 220V, 50HZ, 2KW |
|
Test holder material |
Quartz |
|
Heating Element |
High temperature resistance wire |
Standard Configurations
Main machine 1set, test software 1 copy, quartz standard sample 1pc, desktop PC 1set.
