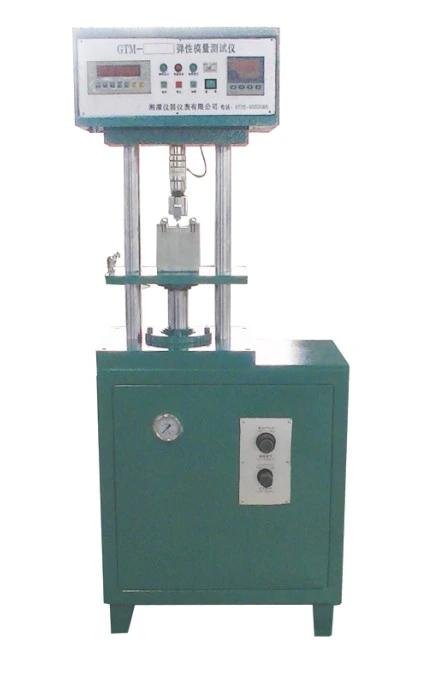

GTM-2 Static Elastic Modulus Tester
Standard
GB/10700-2006 "Test method for elastic modulus of fine ceramics - bending method",
YS/T63.13-2006 "Testing method for carbon materials for aluminum, Part 13 Determination of Young's modulus - Static test method"
GB/T23266-2009 "Elastic Limit Testing of Ceramic Plates"
Specifications
Maximum load: 0~10000N or 0~50000N (other specifications can be customized according to user requirements);
Force measurement accuracy: relative error ≤±0.15%;
Deformation measurement range: ±5mm;
Deformation accuracy: relative error ≤±0.5%;
Loading deformation rate: 0~1mm/min can be adjusted arbitrarily;
Sample size: ≤120*100mm (conventional);
Or: diameter 50mm, length 50mm or 820*100mm (other specifications can also be customized according to user requirements)
Voltage: 380VAC, 50HZ
Configuration list
GTM-II tester, software, test fixture 1set, desktop computer 1set(configured according to the contract).
