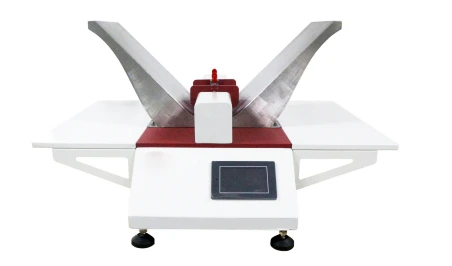

Cotton Core Strength Tester
Model
FZ-W300
Features
1. Using high temperature spraying process, the test parts are 304 stainless steel.
2. It adopts industrial color touch screen display control, which is durable and easy to operate.
3. The crank arm connecting rod transmission mechanism completes the reciprocating motion of the instrument.
4. After the test is completed, it will stop automatically, and the speed can be automatically adjusted within the adjustment range.
Specfication
|
Reciprocating stroke |
10±0.1cm |
|
Fixture spacing |
21±0.2cm |
|
Maximum distance between fixtures |
11±0.2cm |
|
Test times |
0-99999 times, can be set digitally |
|
The angle of the test bench |
90 degrees, the bottom chamfer R=100mm |
|
Pusher |
U-shaped pusher |
|
Speed range |
40 to 90 times/min, automatic adjustment can be set |
|
Dimensions |
850×660×450mm, 300×300×1200mm |
|
Weight |
40kg |
|
Power supply |
AC220V 50Hz 100W |
