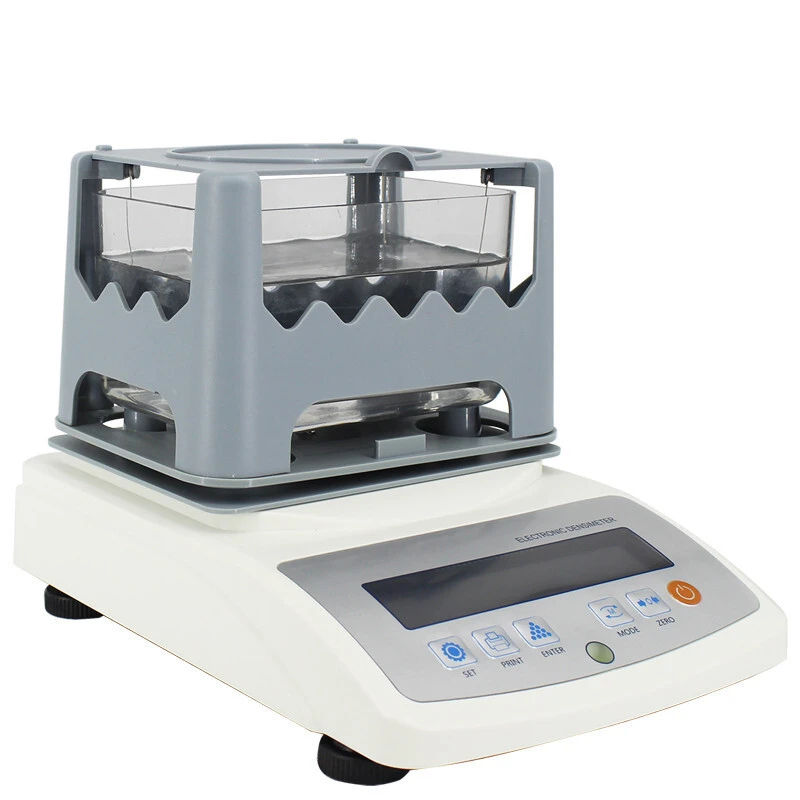

Electronic density balance for solids and liquid-1709261362292331
with only 1 step, no need to weigh the weight-in-water of sample, much faster in process; HBM precision load cell adopted, higher accuracy & stable performance.
It can test: rubber, plastic, grain, floating body, ceramic, PVC tubes, sheet material, plastic material, powder metal, magnetic material, rock, sponge, PE grain, cables, liquids.
Features
l Only 1 step to measure, much faster
l Automatic judgment and prompt
l Zero point tracking, buzzer alarm, overload alarm
l Water or other liquid can be used as medium
l Actual water temperature setup, medium density setup, waterproof treatment medium density setup
l HBM load cell guarantee more stable performance & higher accuracy
l Multi test method available: saturation method, surface cover water proof method, high consistency medium liquid method
l Temperature Offset, Solution Offset Available
l Rs232 Port Can Connect With Printer
l Unibody Large Trough, corrosion resistant
l Unibody Density Parts Features Durable In Use, Easy Operation
l Equipped With specialized wind shield,
Technical Specifications
|
1. Model |
MDJ-303 |
MDJ-603 |
MDJ-1203 |
MDJ-303A |
MDJ-603A |
|
2. Density analysis |
0.001 g/cm3 |
||||
|
3. MAX weighing |
300g |
600g |
1200g |
300g |
600g |
|
4. MIN weighing |
0.01g |
0.005g |
0.005g |
||
|
5. Density measurement range |
0.001—99.999g/cm3 |
||||
|
6. Measurement types |
Any irregular block, particle, or floating object with a density greater than 1 or less than 1 |
||||
|
7. Testing principle |
Archimedes buoyancy method |
||||
|
8. Testing time |
5-20 seconds |
||||
|
9. Calibration method |
Single key weight calibration and automatic detection |
||||
|
10. Display value |
Weight g, density g/cm3, volume cm3, percentage% |
||||
