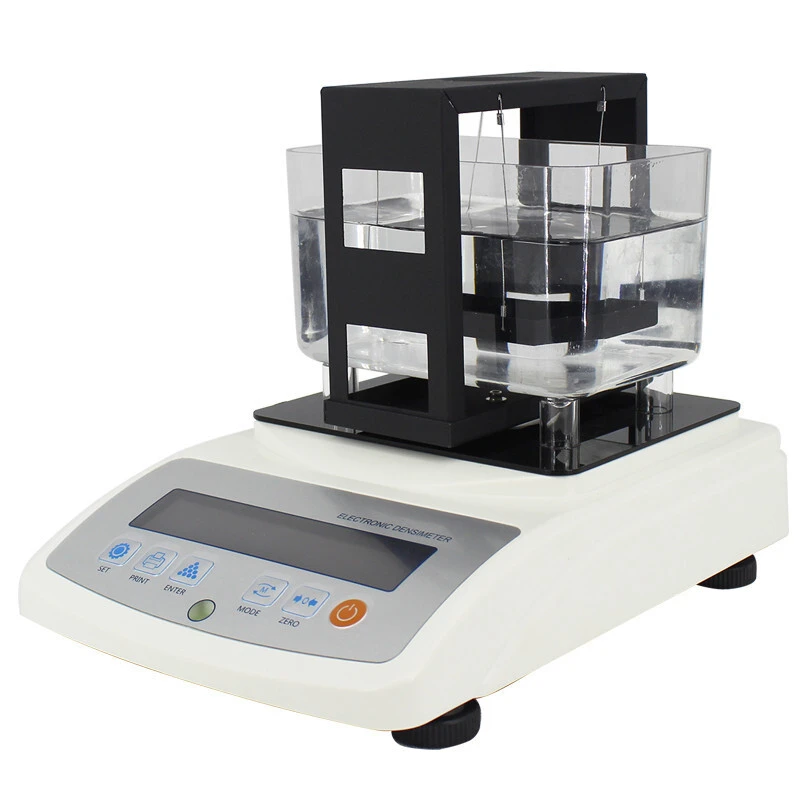

Precision electronic density balance-1709260919821809
Standards
ASTM D792,ASTM D297,GB/T1033, GB/T2951,GB/T3850,GB/T533,HG4-1468,JIS K6268,ISO 2781,ISO 1183,GB/T208,GB/T5163,GB/T 1933,BS2782 Part 6 Method 620D, ASTM D1505-68, ISO 1183
Features
German made HBM sensors
Free Flip integrated aluminum alloy measuring table with a non lifting cover
PC material sink, wear-resistant, drop resistant, corrosion-resistant, 0.5cm stainless steel suspension wire, not bent or deformed
Density and volume direct reading measurement function, automatically displayed without calculation
Can set the upper and lower limits of density, automatically determine whether the product is qualified, and has a prompt function
Water can be used as the medium, and other liquid media can also be used [solution compensation function]
Can set the actual water temperature [temperature compensation function]
Adopting a large capacity PC measuring water tank with integrated forming, which is corrosion-resistant and more convenient for testing large solid blocks. Different sizes of water tanks can be customized according to the measurement product size
Built in rechargeable battery, equipped with a wind shield, more suitable for on-site testing
Equipped with RS-232C communication interface, convenient for connecting PC and printer, optional printer for printing measurement data
Specifications
|
1. Model |
MDJ-G1204 |
MDJ-G2004 |
MDJ-G3004 |
|
2. MAX weighing |
120g |
200g |
300g |
|
3. Density accuracy analysis |
0.0001 g/cm3 |
||
|
4. MIN weighing |
0.001g |
||
|
5. Measurement range |
0.0001—99.9999g/cm3 |
||
|
6. Measurement type |
Any irregular block, particle, or floating object with a density greater than 1 or less than 1 |
||
|
7. Specific gravity measuring frame |
Precision aluminum alloy integrated stamping forming without lifting cover (L14×W6 ×H13cm） |
||
|
8. Testing principle |
Archimedes buoyancy method |
||
|
9. Test time |
5-20S |
||
|
10. Calibration method |
Single key weight calibration and automatic detection |
||
|
11. Display value |
Weight g, density g/cm3, volume cm3, percentage% |
||
