FHY-C ceramic tile floor tile slope method anti-slip coefficient measuring device

The device meets the testing requirements of the ceramic anti-slip coefficient in Appendix C of the critical test method of the slope method in the evaluation of the anti-slip grade of ceramic tiles in GB/T37798-2019.

Product Introduction:

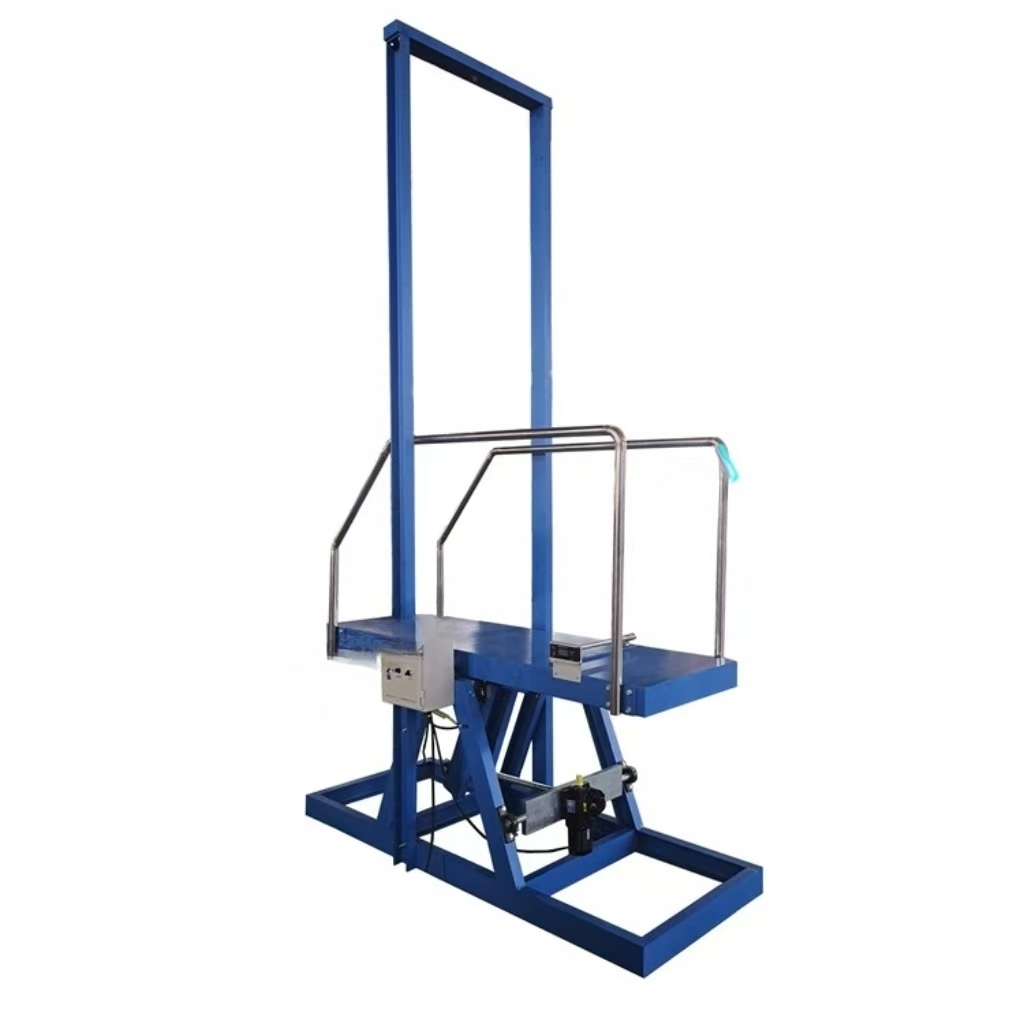

The test device is mainly composed of a platform with a width of about 600 mm and a length of about 2000 mm that can place the test piece on the top, guardrails on both sides, and safety belts on the top.

Inquiry

Write a Review

Test setup:

The platform is controlled by the tester and can rotate continuously from the horizontal position between 0° and 45° with an angle accuracy of 0.2°. The effect on the angle due to the tester walking on an inclined plane should not exceed 0.5°. The platform is also equipped with a water spray device that can spray the detergent solution on the specimen surface at a flow rate of (6.0± L0)L/min during the test.

Test Principle:

The tester walks back and forth on the slope with a certain slope paved with the test piece, and gradually increases the angle of the slope during the walking process until the limit angle can walk safely on the slope. This is used as a critical angle to reflect the degree of slip resistance of the surface of the specimen.
