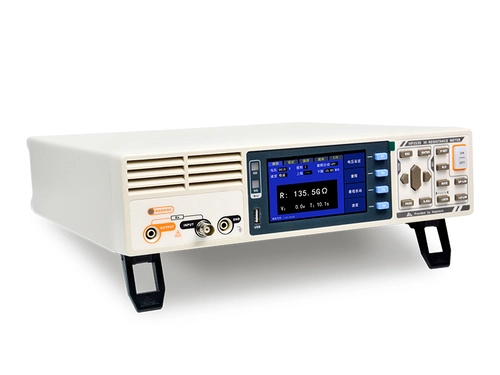

HP3530/A Series Insulation Resistance Tester-1699871608051368

The HP3530/HP3530A is an insulation resistance tester controlled by a high-performance processor that can be used in various electrical, electronic components, and electronic devices within different ranges; Seven range testing, the output voltage can be arbitrarily set at a resolution of 1V from 0 to 1000V, and a resistance of 500 Ω to 9.9P Ω can be tested, with a maximum display of 99999 digits.

Inquiry

Write a Review

Specifications

Model		HP3530	HP3530A
Testing parameter		Insulation resistance, leakage current, surface resistance, volume resistivity
Readback voltage accuracy		0.5%
Output voltage		Program controlled 1~1000V, adjustable step 1V	Program controlled 1~1500V, adjustable step 1V
Testing range	Insulation Resistance	500Ω~9.9*1015Ω
	Leakage Current	2mA ~ 10fA
Range		Seven-range automatic or manual
Testing accuracy		1%(10M~1G)；3%(1G~10G)；5%(10G~100G)；10%(100G~1T)；20%(greater than 1T)
Testing speed		Once a second，5 times/second
Calibration		Open circuit clearing in full range
Timer charger		0~999.9S
Comparator		1 set of records，Determine the upper limit (HI), qualified limit (IN), and lower limit (LO)
Trigger mode		Manual Trigger(MAN)，External Trigger(EXT)，Bus Trigger(BUS)
Interface		RS232 interface，LAN interface，I/O interface
Power source		Voltage:198VAC~240VAC；Frequency:47Hz~63Hz
Size and weight		Size:331mm329mm80mm；Weight：4.1kg

Features

Instrument equipped with discharge function

Unique surface resistance and volume resistivity testing function

With calibration function, open circuit clearing in full range

·Equipped with rich interface configuration

Application

Applied to measure the insulation resistance and leakage current of various electronic components, equipment, dielectric materials and wires and cables, etc.

The matching electrode box can test the surface resistance and volume resistivity of materials.
