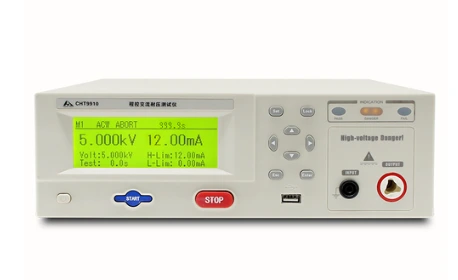

Program Controlled Safety Gauge Tester

The CHT99xx series programmable safety gauge tester includes CHT9910/CHT9912/CHT9922; Equipped with AC/DC voltage withstand test and insulation resistance test functions; It has 6 sets of testing modes and can achieve programmable testing. The AC and DC voltage output is 0.01kV~5kV/6kV, with an insulation resistance test range of 100k Ω~99G Ω. It also has arc detection and overvoltage detection functions. Optional RS485 interface allows for easy networking of experimental instruments through MODBUS communication protocol.

Feature

· Equipped with AC withstand voltage test, DC withstand voltage test, and insulation resistance test functions (only CHT9922)

· AC/DC voltage output 0.01kV~5kV/6kV, insulation resistance test range 100k Ω~99G Ω

· Equipped with arc detection and overvoltage detection functions

· With 6 sets of testing modes, programmable testing can be achieved

· Optional RS485 interface, instrument networking can be easily achieved through MODBUS communication protocol

Application

Automated testing systems, household appliances, transformers, motors, electrical equipment, electric heating appliances, photovoltaic industry, new energy vehicles, electronic components, medical equipment, etc.
