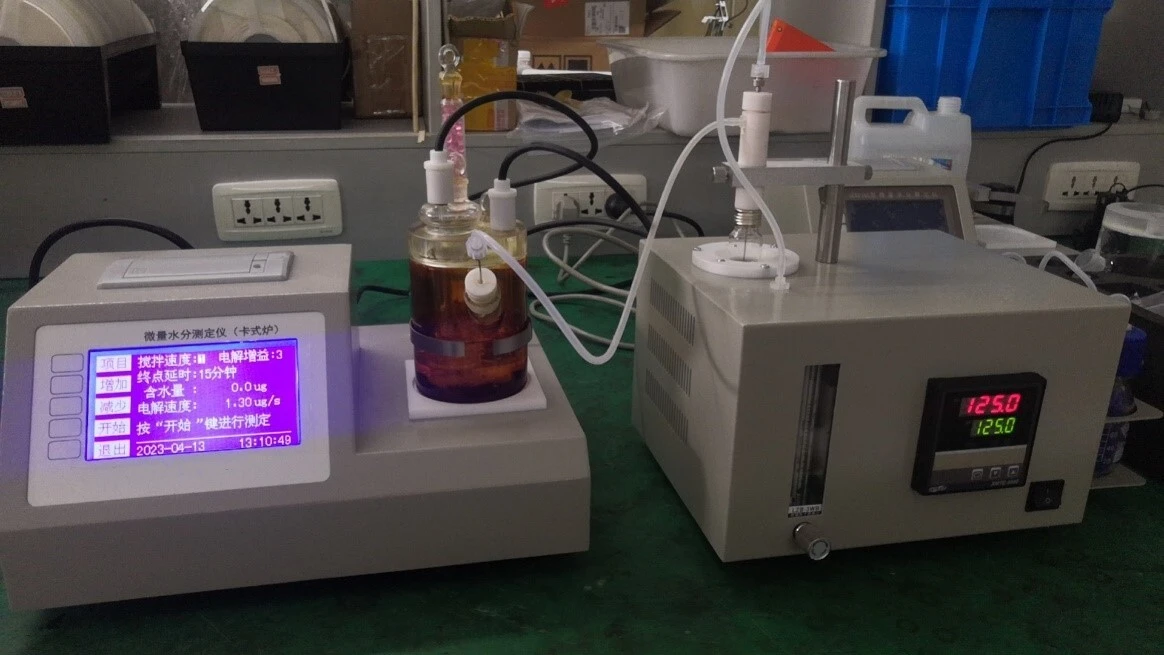

Karl Fischer moisture meter with heat furnace-1699869484552616

Specifications

Measurement range: 0ug~200mg

Precision: The test water volume is between 3ug~1000ug, with an error of less than ± 2ug. The measured water volume is greater than 1000ug, with an error of less than ± 0.2%

Resolution: 0.1ug

Electrolytic current: 0-400mA

Standby power consumption: 5W Maximum power consumption: 30W

Power supply voltage: AC220V20% 50HZ ± 10%

Applicable ambient temperature: 5-40C Applicable ambient humidity: S85% RH

Temperature range: room temperature~250C

Sample bottle specification: diameter<23mm (compatible with 10mL and 20mL headspace bottles)

Flow range: 0-100mL/min (other ranges can be customized)

Overall dimension: 320X240X150 (mm)

Net Weight: approximately 6kg



Features

1. Liquid product display screen, no identification button operation:

2. Use blank current compensation and balance point drift compensation to correct the measurement results:

3. Unique switch constant current electrolysis technology to reduce overall power consumption:

Time stamped history, storing up to 500: 4

5. Equipped with electrode open circuit and short circuit self check alarm function:

6. Built in high-speed thermal sensitive micro printer, beautiful and fast printing, with offline printing function:

7. Equipped with a standard RS232 interface that can be connected to a computer for easy processing of test data (optional):

8. With screen protection function, extending the service life of liquid products:

9. Can achieve full Chinese/English interface display (optional)
