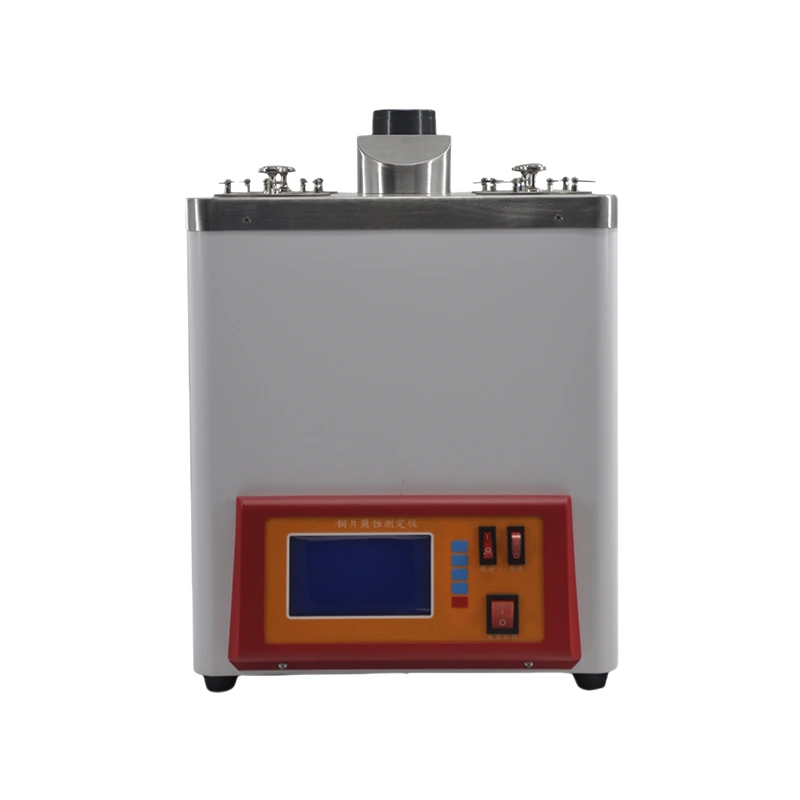

Copper Strip Corrosion Tester ASTM D4048 ISO 6251
Standards: GB/T5096,GB/T 7326,ASTM D4048,SH/T 0232,ISO 6251,SH/T 0023,ASTM D130
Model: SY-5096
Features
★ It is applicable to measuring the corrosion degree of aviation gasoline, jet fuel, automotive gasoline, natural gasoline, or other hydrocarbons with Reid vapor pressure not greater than 124 kPa (930 mm Hg), solvent oil, diesel, distillate fuel oil, lubricating oil, grease, and other petroleum products on copper sheets.
★ The intelligent measurement and control system has a self-diagnosis function.
★ The test bath is a metal bath with precise temperature control.
★ The copper strip corrosion test time can be set and alarmed.
★ Adopt PID temperature control technology.
Specifications
|
Working power supply |
AC220V±10%，50Hz |
|
Sensors |
PT100 |
|
Temperature control range |
RT～150℃ freely setup |
|
control accuracy |
±1℃ |
|
Display Method |
Color LCD |
|
Temperature control heating power |
600W |
|
Auxiliary heating power |
1000W |
|
Time control range |
1min～24hr |
|
Time display method |
Color LCD |
|
Experimental hole |
4 |
|
Number of measured samples |
4～12 |
|
Working temperature & humidity |
5℃～ 40℃≤85％RH |
|
The overall power consumption is not greater than |
1800W |
|
Overall dimensions |
480mm*360mm*520mm |
|
Weight |
18kg |
