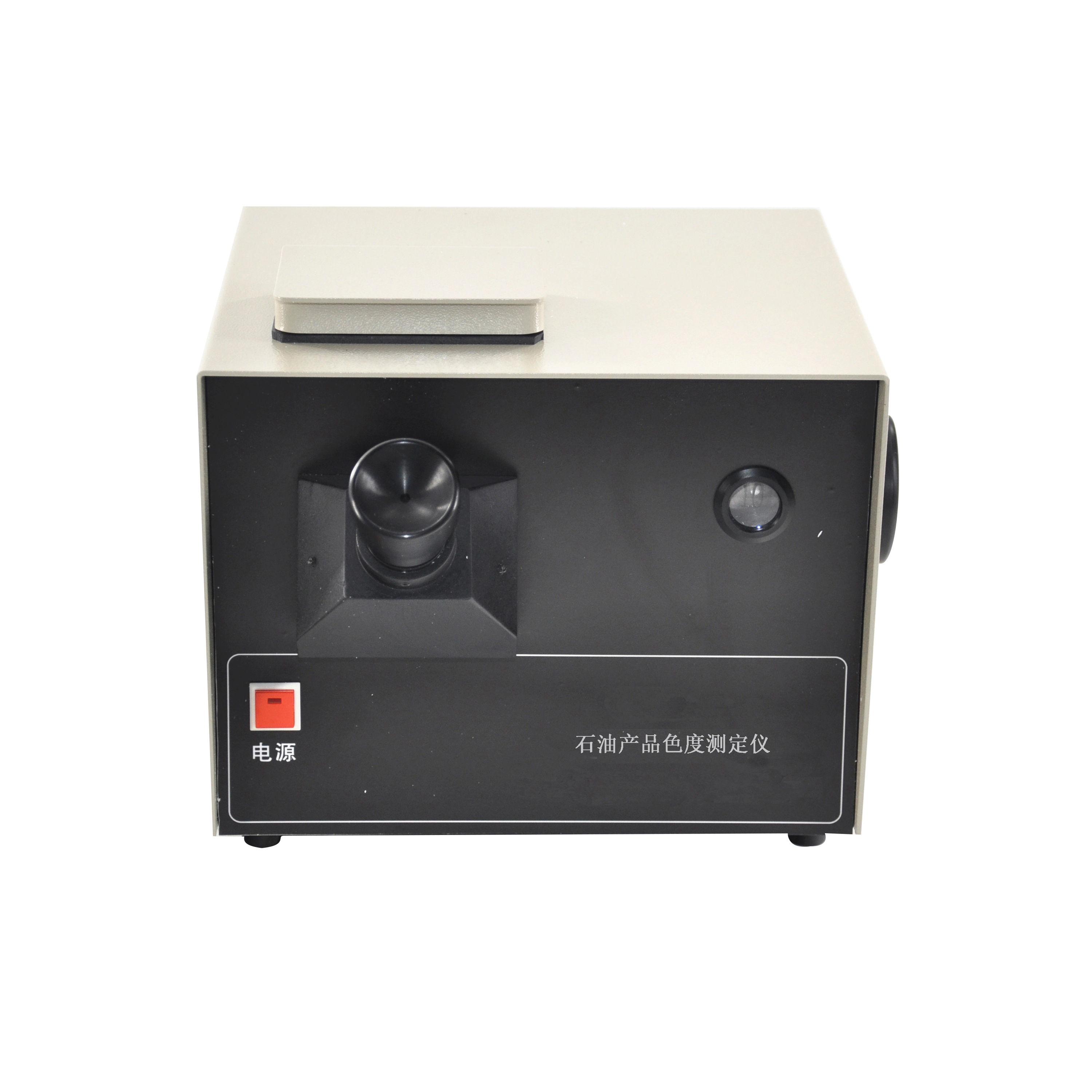

Petroleum Product Colorimeter

This instrument is designed and manufactured according to the SH/T0168 standard, and is used to determine the color of various lubricating oils and other petroleum products. The measurement method involves injecting the petroleum product sample to be measured into a colorimetric tube, and then comparing it with a standard color plate to determine its chromaticity color number.

Model: SY-0168

Inquiry

Write a Review

Features
Determine the color of various lubricating oils and other petroleum products.

The measurement method involves injecting the petroleum product sample to be measured into a colorimetric tube, and then comparing it with a standard color plate to determine its chromaticity color number.

The instrument consists of a standard color plate, an observation optical lens, a light source, and a colorimetric tube.

Using frosted milk shell bulbs as the light source.

After being filtered, the light source can evenly illuminate the color glass and colorimetric tube on the standard color plate.

The optical eyepiece has the ability to adjust and focus light, making it easy to use.

Technical Parameter

Inner diameter of colorimetric tube Φ 32mm high, 120-130mm

Environmental temperature: 5 ℃~40 ℃

Relative humidity ≤ 85%

Power supply voltage AC 220V ± 10% 50Hz ± 10%

Power consumption<500W

26 standard color discs Φ 14 light holes, 25 standard colored glass pieces with 1-25 color codes in sequence, and 26 holes are blank.

Chroma 1-25
