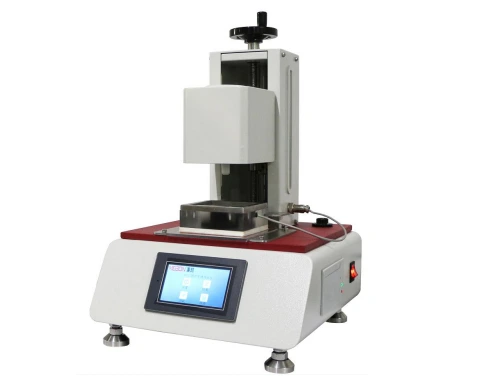

Liquid penetration tester
Model
FZ-W814
Standard
FZ/T 60017 Test method for liquid penetration of thin nonwovens for hygiene
GB/T 24218.8 Determination of liquid breakthrough time
GB/T 24218.13 Determination of liquid multiple penetration time
GB/T 24218.14 Determination of anti-moisture content of coating materials
Features
Color touch screen control, Chinese and English menus, man-machine dialogue mode, easy to operate.
Built-in thermal printer, convenient to quickly print test results on site.
The penetrating disc adopts special plexiglass through special processing.
All data and statistical results can be freely viewed in the host.
The penetrating disc is equipped with a precise positioning device to avoid collision and damage.
The penetrating disk electrode is corrosion-resistant.
Specfication
|
Flow rate of funnel with solenoid valve |
flow through 25ml in (3.5±0.25)s |
|
Penetration times |
1 to 5 times can be set |
|
Interval setting time |
20~99s (arbitrary setting) |
|
Substrate material |
transparent material plexiglass |
|
Substrate size |
125×125mm, thickness about 5mm |
|
Penetrating disc size |
100×100×25mm |
|
Penetrating disc weight |
500g±5g |
|
Electrode diameter |
1.6mm |
|
Sample size |
100×100mm |
|
Dimensions |
410×370×500mm |
|
Weight |
22kg |
|
Power supply |
AC220V 50Hz 50W |
