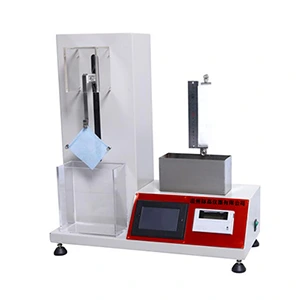

Non-woven Fabric Water Absorption Tester Wicking Height Tester
Standard:FZ/T 64012.2 - Part 2,GB/T 24218.6
Features
1. Touch screen control, Chinese and English menus, man-machine dialogue mode, easy to operate.
2. Built-in thermal printer, convenient to quickly print test results on site.
3. High-precision sensor, good linearity and strong stability.
4. The test process is fully automated, easy and fast operation is simple and fast, high accuracy
5. Made of high-quality stainless steel, features durable and beautiful.
Specfication
|
Force measure range |
0~1000g±0.01g |
|
Test accuracy |
0.01%F·S |
|
Test speed |
1~40mm/s, set arbitrarily |
|
Liquid suction & dripping time |
0~999s, set arbitrarily |
|
Sample size for liquid absorption |
100×100mm |
|
Sample size for wicking rate |
30×250mm |
|
Printing system |
embedded thermal printer |
|
Dimensions |
540×380×650mm |
|
Weight |
25kg |
|
Power supply |
AC220V±10% 50Hz 100W |
Configuration Checklist
|
Order Number |
Name |
Number |
Remarks |
|
1 |
Host |
1 |
|
|
2 |
Notch cutting tool |
3 |
Optional non-standard sizes |
|
3 |
Attachment |
1 |
|
|
4 |
Instructions |
1 |
|
|
5 |
Certificate of conformity |
1 |
|
