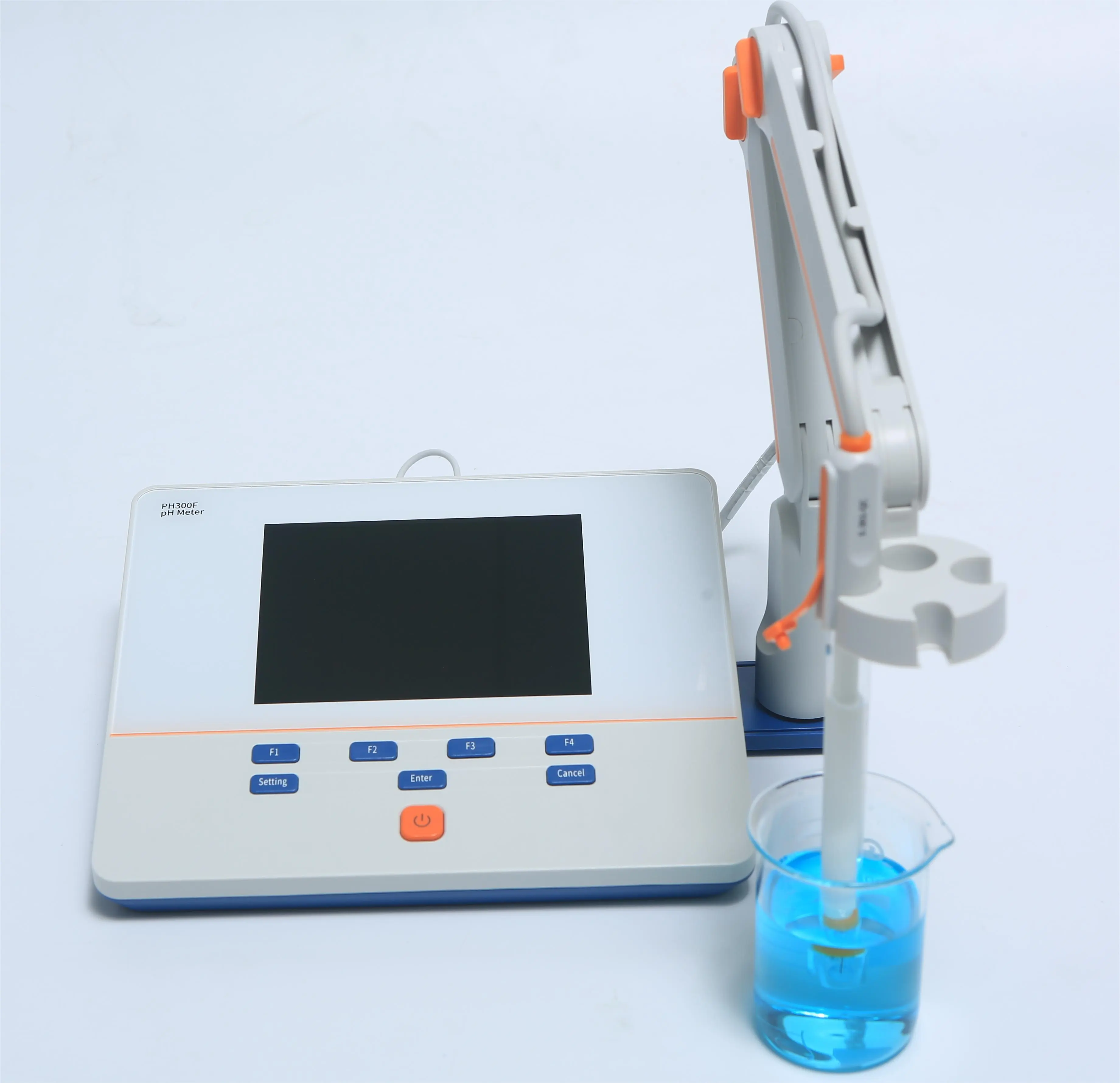

PH300F pH Meter
Features
- High resolution LCD display, 5.7 inches.
- Multi-reading feature allows auto-read, timed-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data Storage 500 sets (GLP-compliant).
- Support for USB or RS-232 communication.
- Reset feature automatically resumes all settings back to factory default options.
- IP54 waterproof.
- 1-5 points calibration with Standard Recognition.
- Selectable pH buffer groups, including NIST, DIN, GB, USA.
- Automatic electrode diagnosis with pH slope and offset display.
E-301-QC 3 in 1 pH composite electrode
NIST pH standard solution(4.01, 7.00, 10.01) , 50ml/vial
REX-5 electrode stand
Parameters
|
Parameters |
pH/Temp.(mV) |
|
|
pH
|
Range |
-2.00 to 20.00pH |
|
Resolution |
0.1, 0.01 pH |
|
|
Accuracy |
±0.01 pH |
|
|
Calibration Points |
Up to 5 |
|
|
Standard Customization |
Yes |
|
|
Standard Recognition |
NIST, GB, USA and DIN buffers |
|
|
mV
|
Range |
-2000.0 to 2000.0 mV |
|
Resolution |
0.1 mV |
|
|
Accuracy |
±0.3 mV or ±0.1% |
|
|
Temperature
|
Range |
-5 to 110 ºC, 23 to 230 ºF |
|
Unit |
ºC, ºF |
|
|
Resolution |
0.1 |
|
|
Accuracy |
±0.2ºC |
|
|
Measurement
|
Reading Mode |
Auto Read (Fast, Medium, Slow), Timed, Continuous |
|
Reading Prompts |
Reading, Stable, Locked |
|
|
Temp. Compensation |
ATC, MTC |
|
|
Data management
|
Data Storage |
500 results each |
|
GLP Features |
Yes |
|
|
Inputs
|
pH Electrode |
BNC(Q9) |
|
Temp. Probe |
4-pin aviation connector |
|
|
Outputs
|
USB |
PC |
|
RS 232 |
printer |
|
|
Display options
|
Backlight |
Yes |
|
Auto Shutdown |
1~60 min, off |
|
|
IP Rating |
IP54 |
|
|
Date and Time |
Yes |
|
|
General
|
Power |
AC Adapter, 100-240V AC input, DC9V output |
|
Dimensions |
242×195× 68 mm |
|
|
Weight |
900g (1.98 lb) |
|
|
Dimensions (Carton) |
370×320×220 mm |
|
|
Weight (Gross) |
2.5 kg |
|
