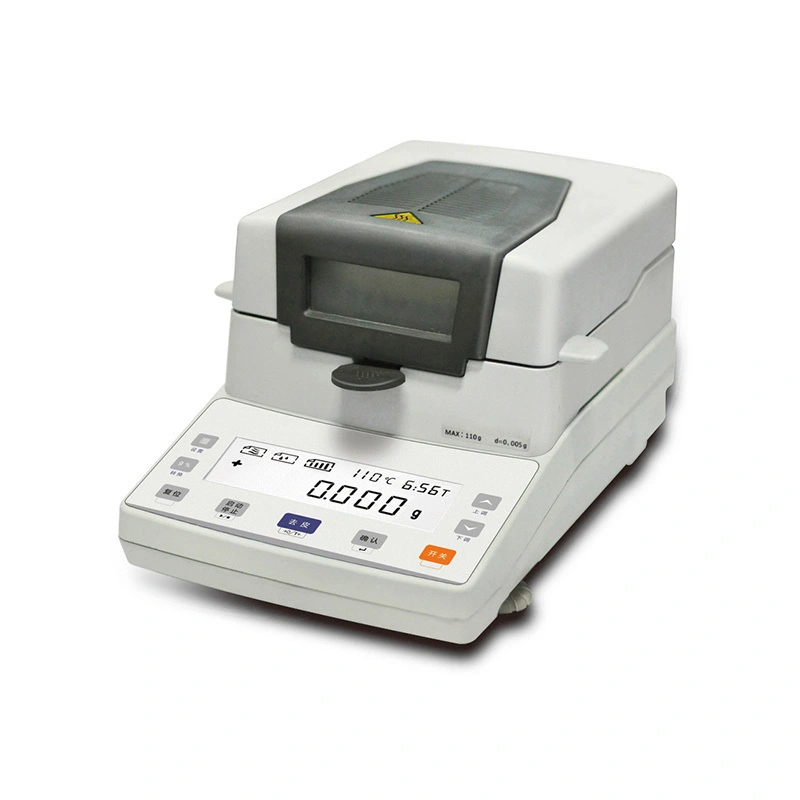

Rapid Moisture Content Meter
Standard accessories list
Tripod 1pc
Anti-scalding basket 1pc
Reusable aluminum plate 50pcs
Square box 1pc
100g Calibration weights 1pc
Power cord 1pc
PC Software 1copy
Product Specifications
| Model | RMA-105 | RMA-102 | RMA-100 |
| Measure Range | 110g/5mg | 110g/2mg | 110g/1mg |
| Load Cell | HM Strain | ||
| Pan Size | Φ90mm | ||
| Balance Readout | 5mg | 2mg | 1mg |
| Work Temp. | 5℃-35℃ | ||
| Heat device | HALOGEN LAMP-1 | HALOGEN LAMP-2 | |
| Temp Sensor | PT-100 | ||
|
Heat Temp Range |
40℃-199℃ | ||
| Temp Step | 1℃ | ||
| Moisture Measure Range | 0.00%—100.00% | ||
| Moisture Content Readout | 0.10% | 0.04% | 0.01% |
|
Dry Weight Measure Range |
100.00%—0.00% | ||
|
Dry Weight Readout |
0.10% | 0.04% | 0.01% |
| Storage Address | 15 nos | ||
Product Introduction
The halogen moisture analyzer employs the halogen lamp pyrolysis weight principle, it is a fast moisture detection instrument. While the moisture analyzer measures the weight of the sample, the halogen lamp heating unit and the moisture evaporation channel quickly dry the sample. During the drying process, the moisture analyzer continuously measures and instantly displays the lost moisture content of the sample. After the drying process is completed, the final moisture content is determined and the content value is locked and displayed.
Compared with the oven heating method, the halogen heating can reach the maximum heating power in the shortest time, and the sample is quickly dried at high temperatures. The test results have good consistency with the oven method, and are replaceable, and the detection efficiency is much higher than that of the oven law. Generally, it only takes a few minutes to complete the measurement. It features simple operation, high accurate test, the moisture value, dry value, measurement time, temperature value, and other data are displayed. RS 232 Interface available to connect PC and printer.
